Fastmaster Products

Swivelwheel-DW58 (Dual Wheel)

$3,150.00

The Swivelwheel 58DW Starts at($3150.00)

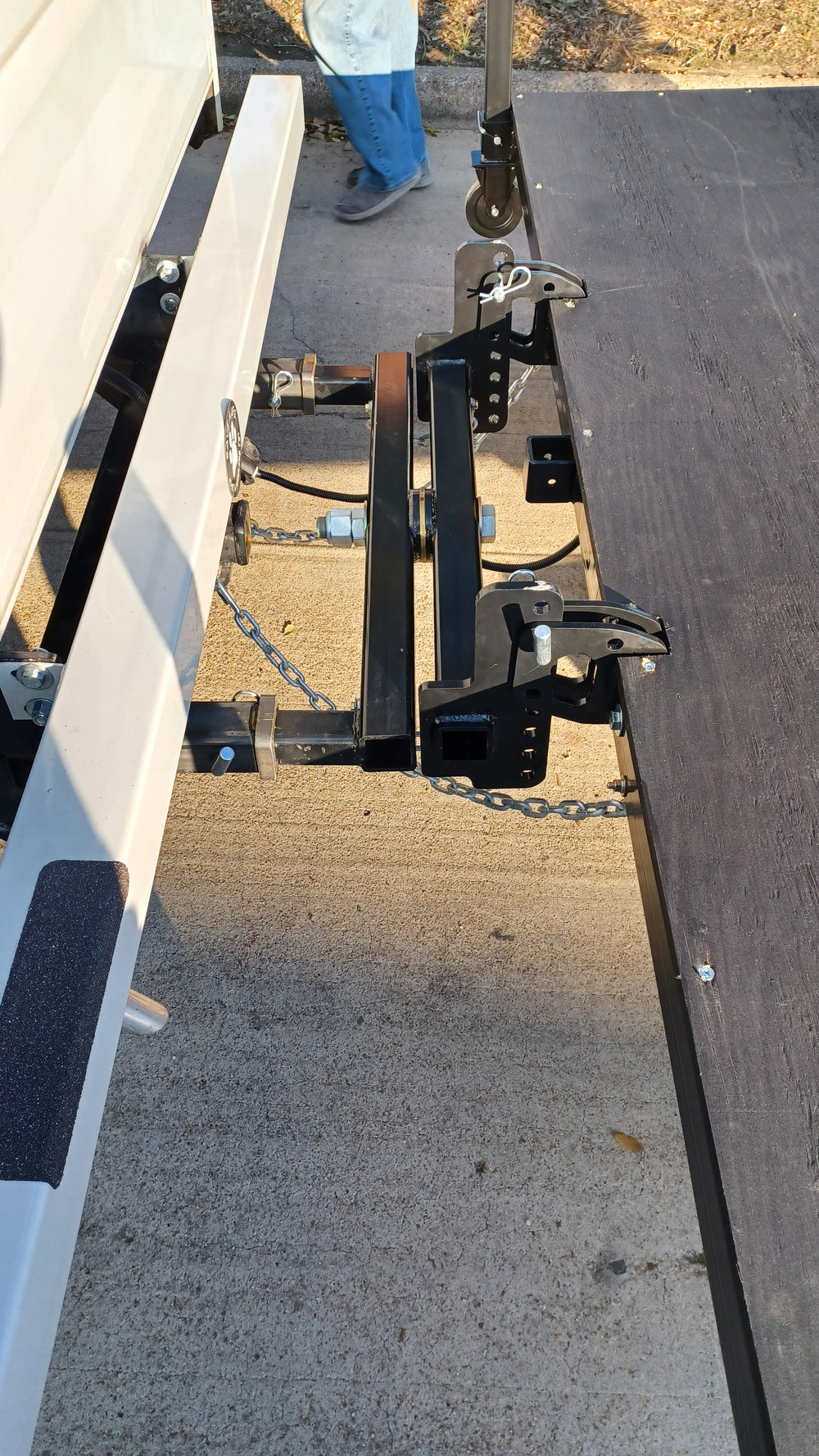

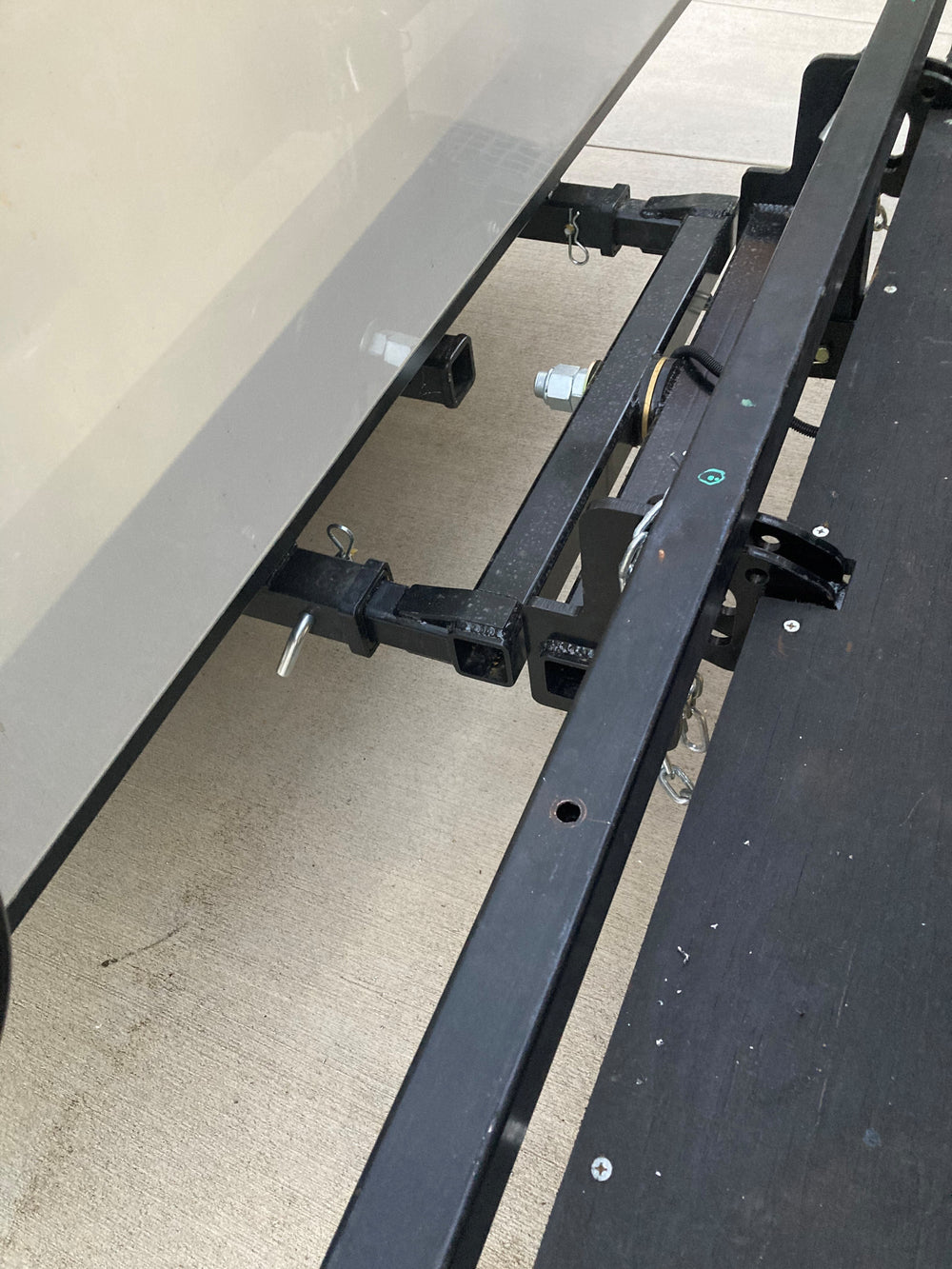

It comes standard with our Rotational Hitch Bar

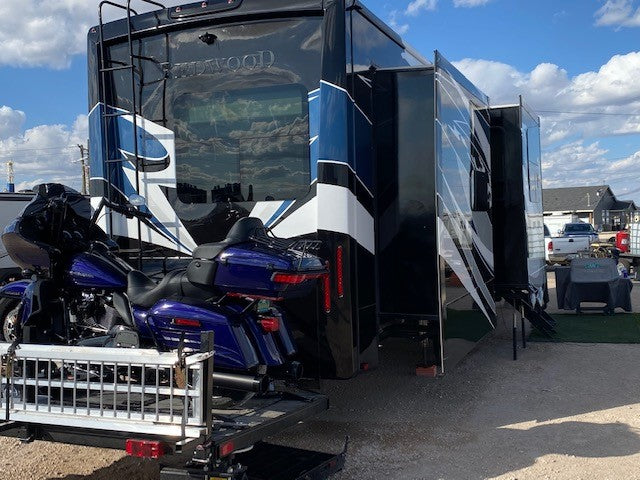

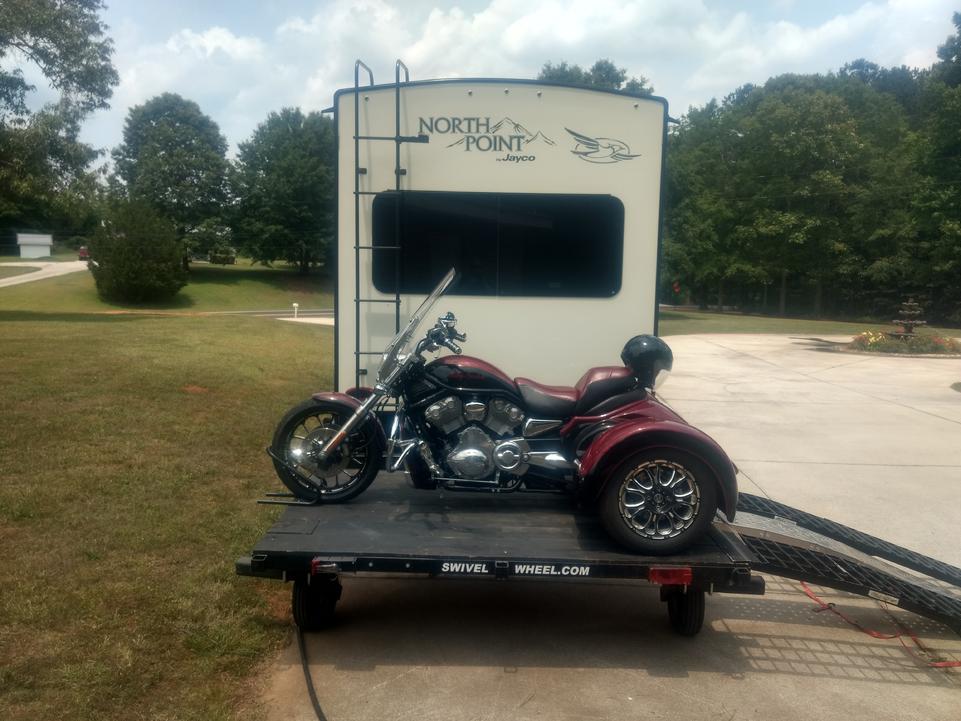

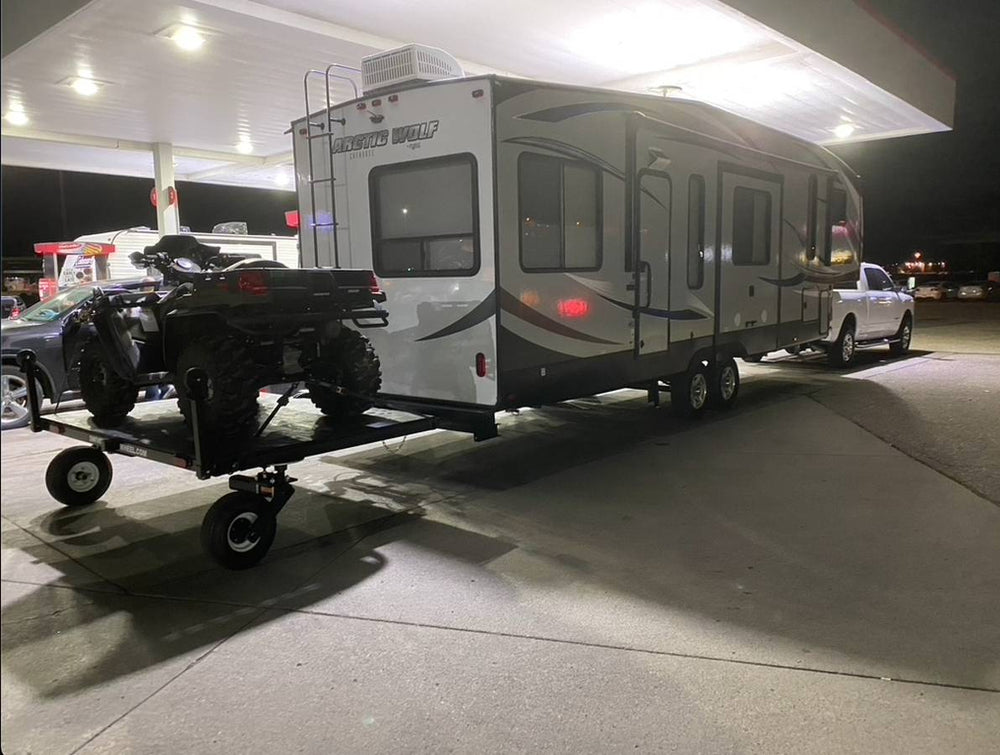

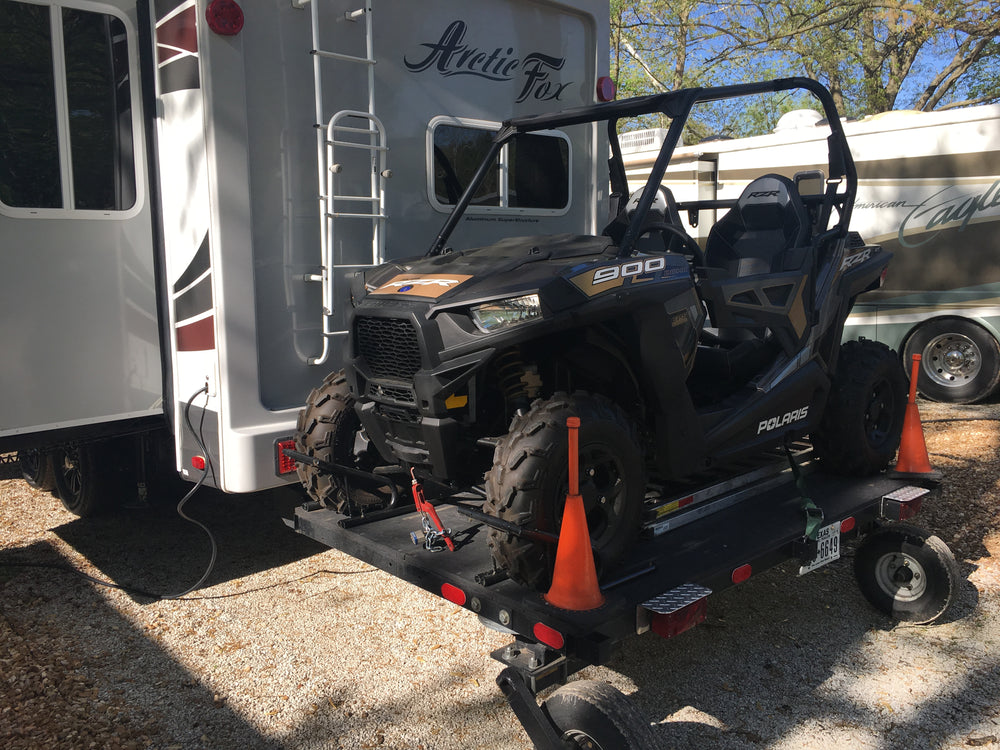

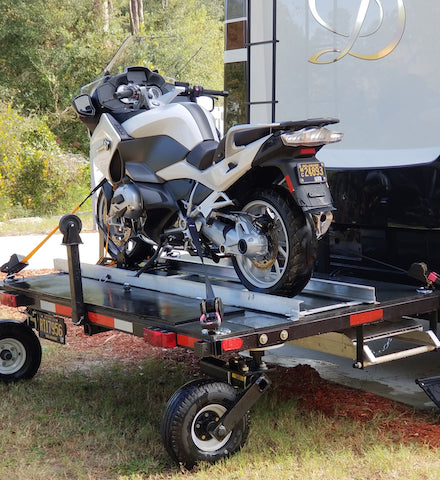

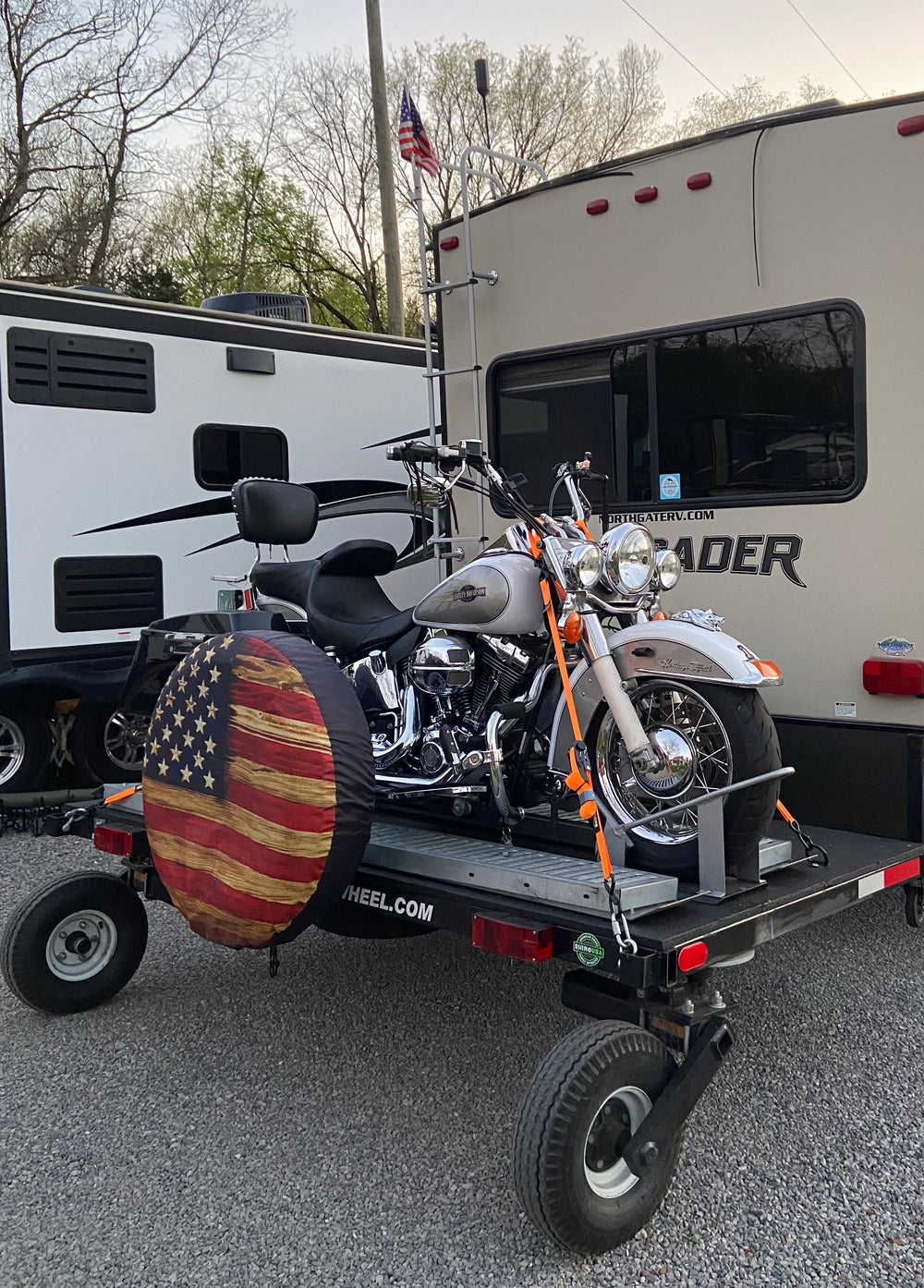

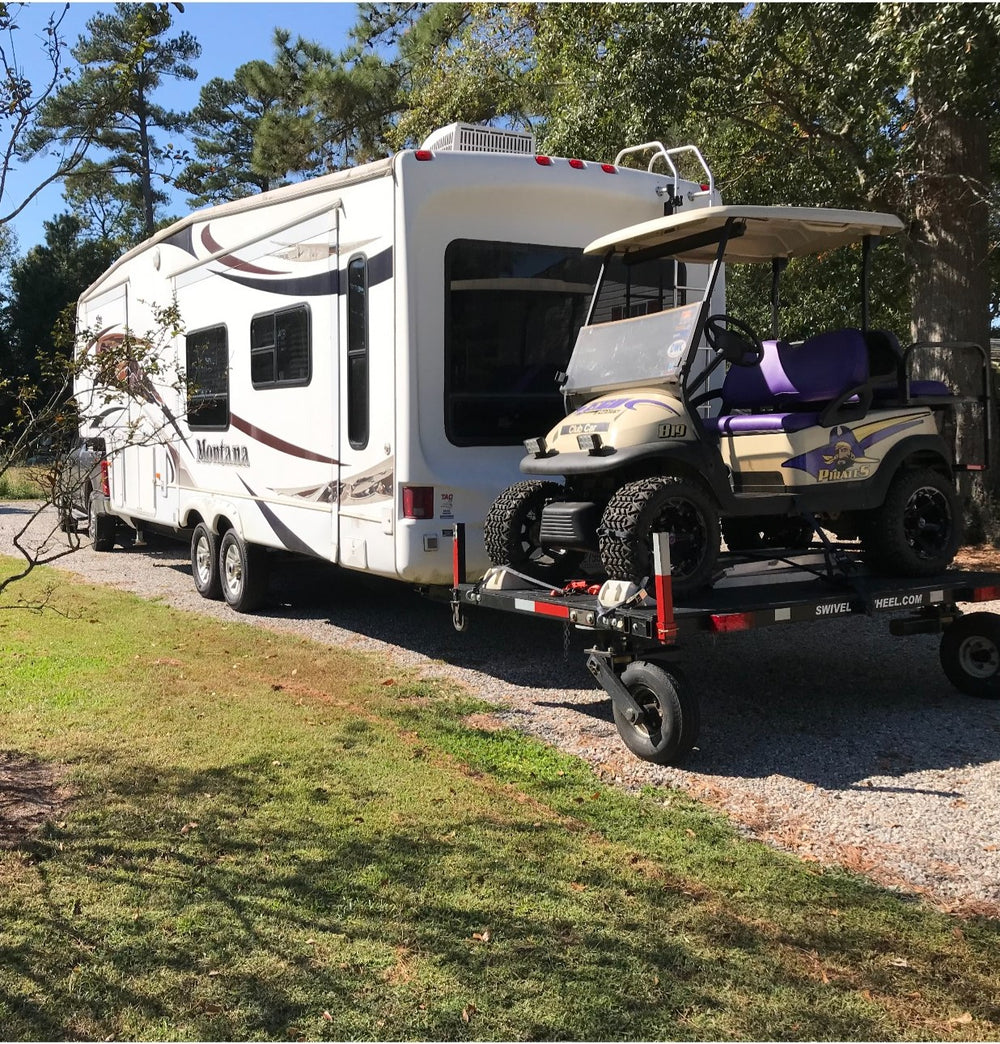

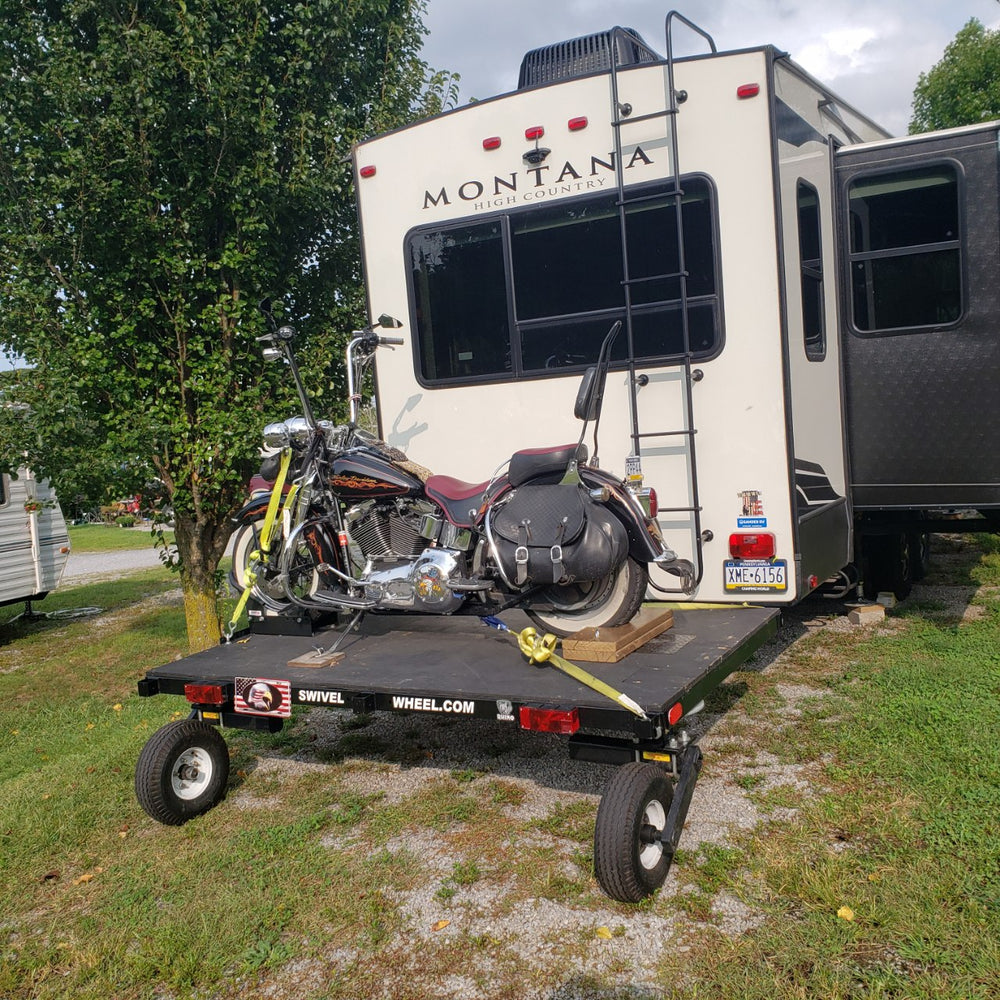

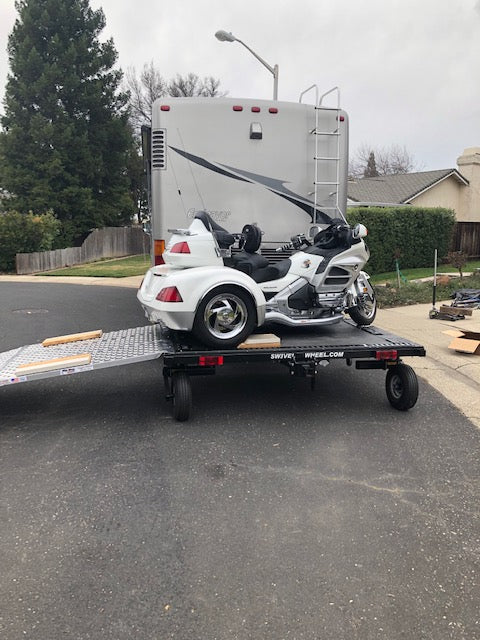

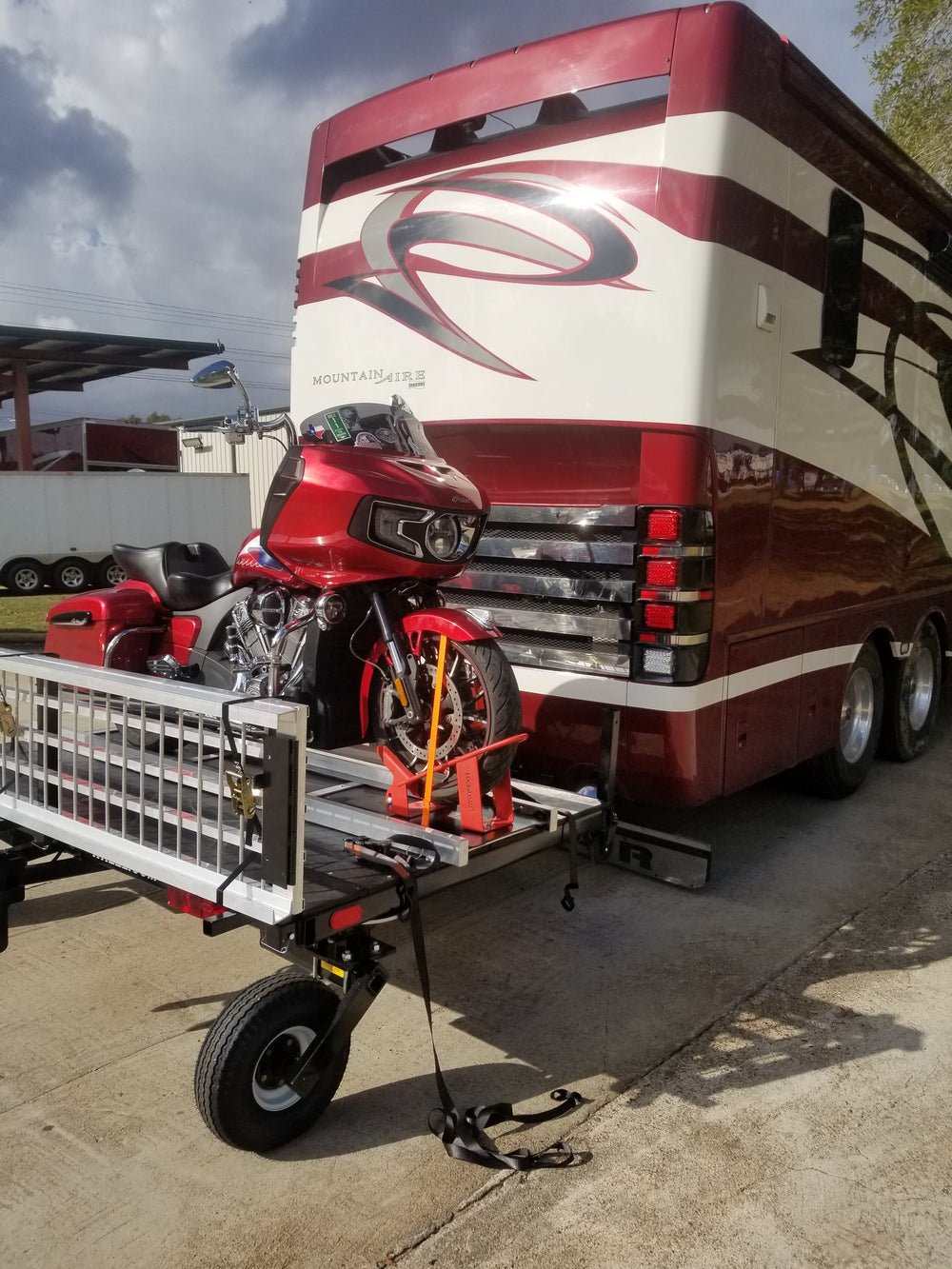

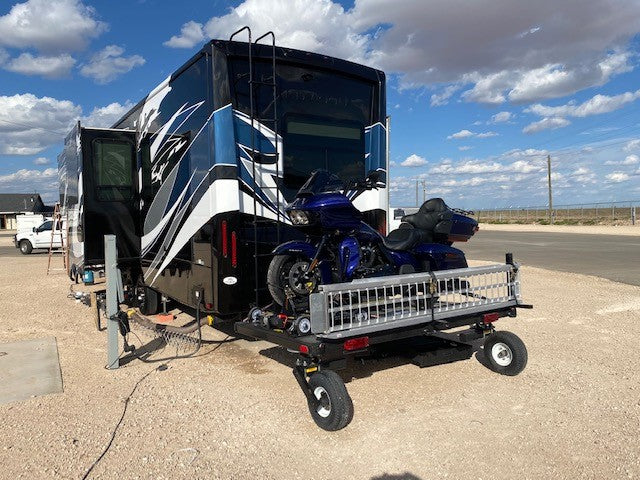

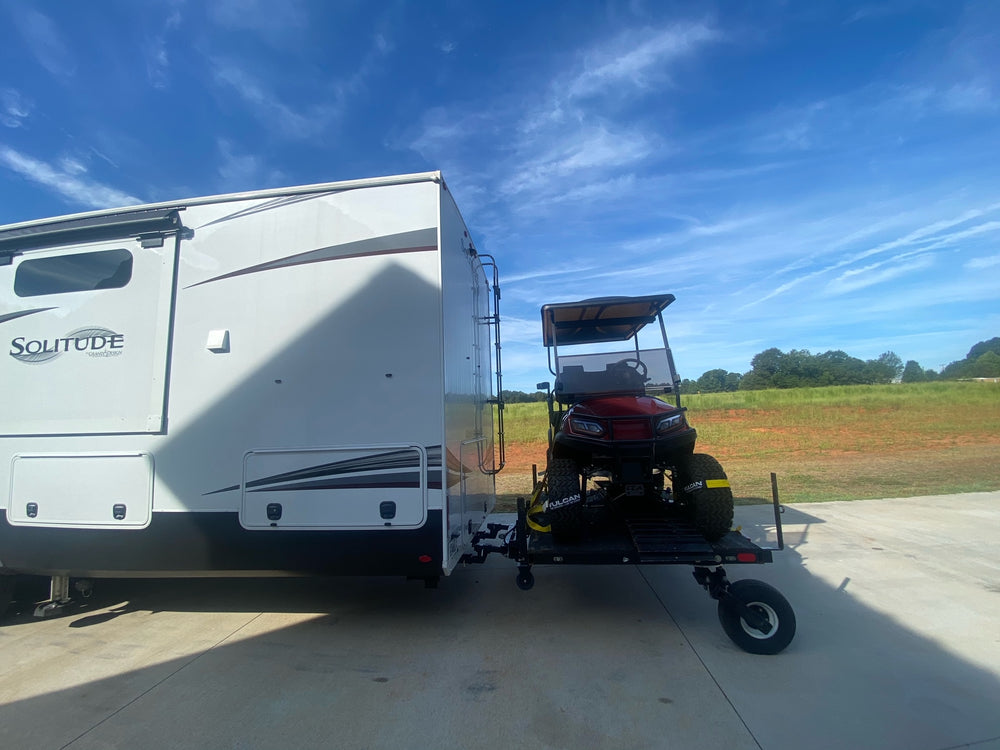

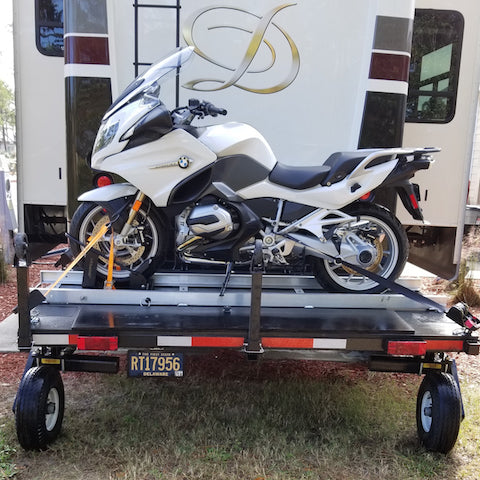

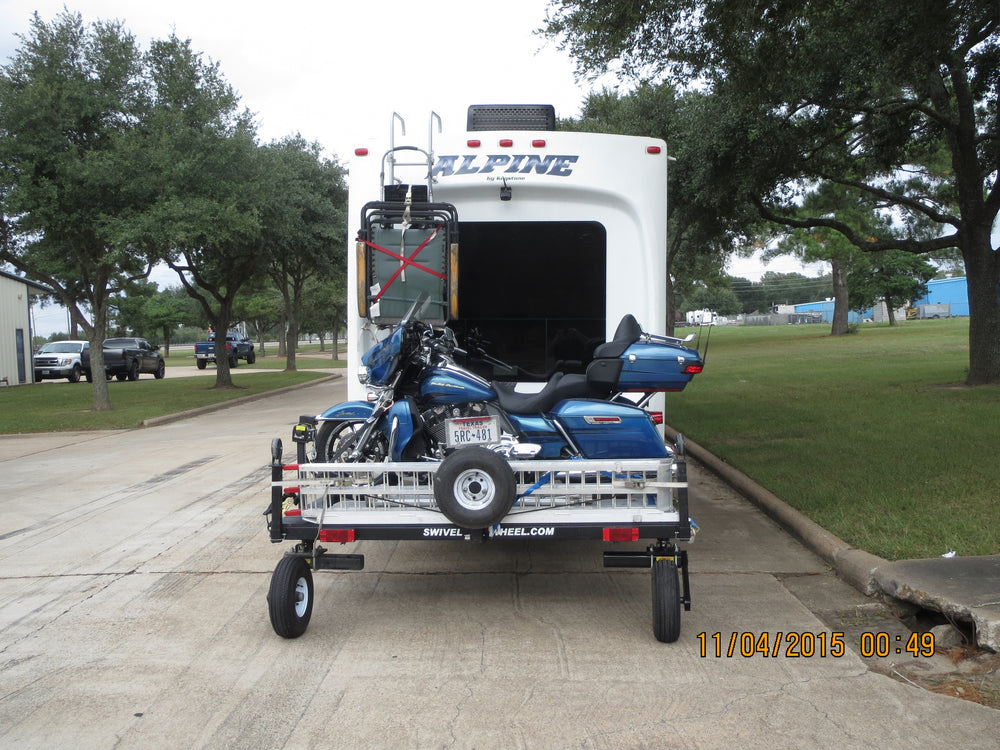

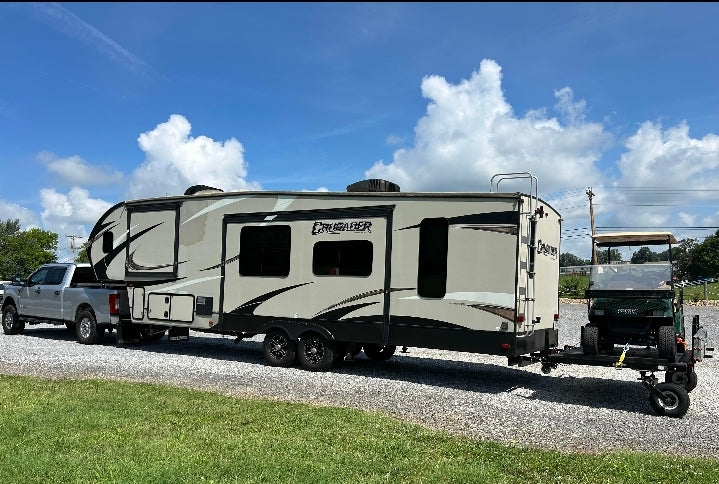

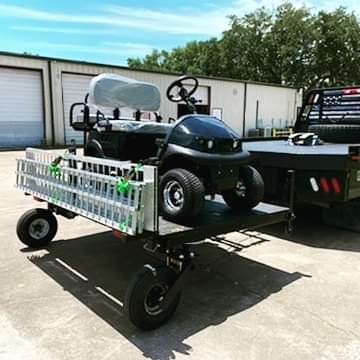

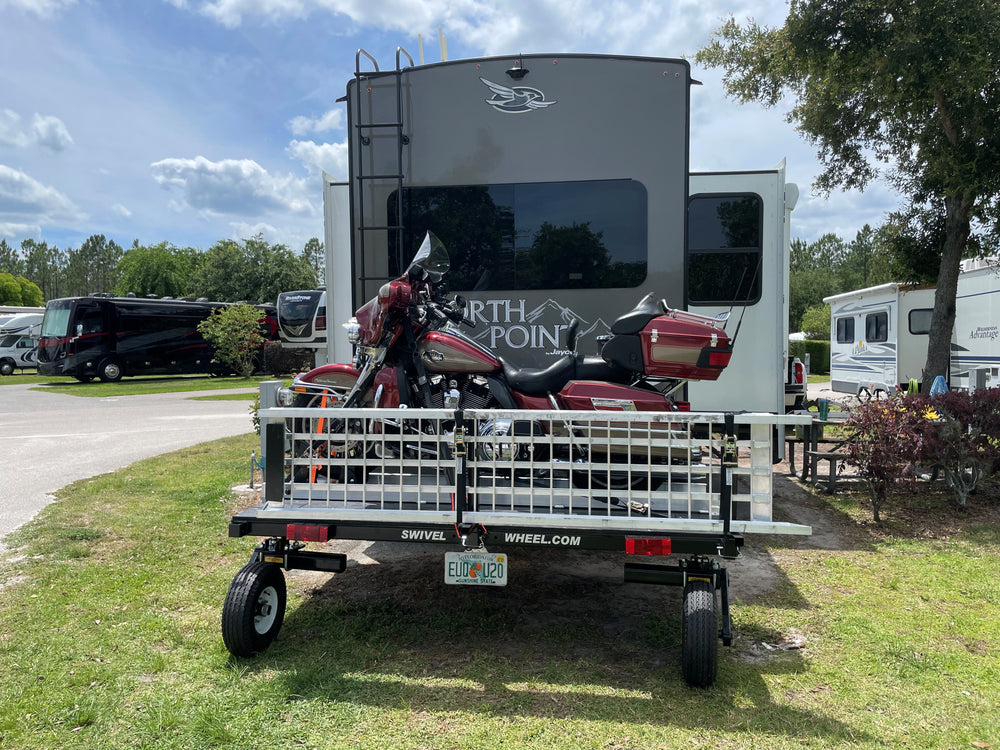

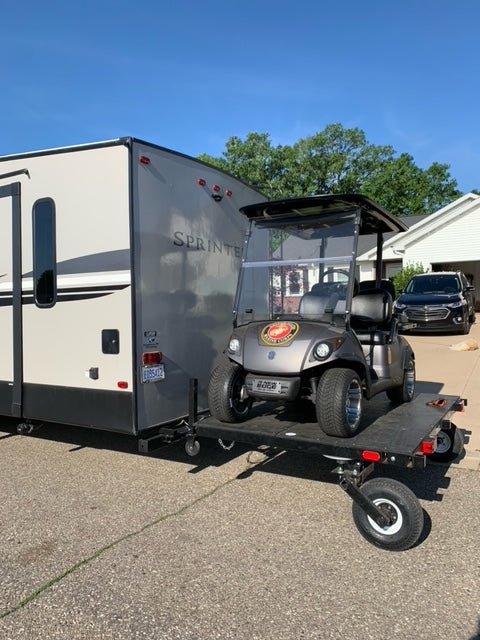

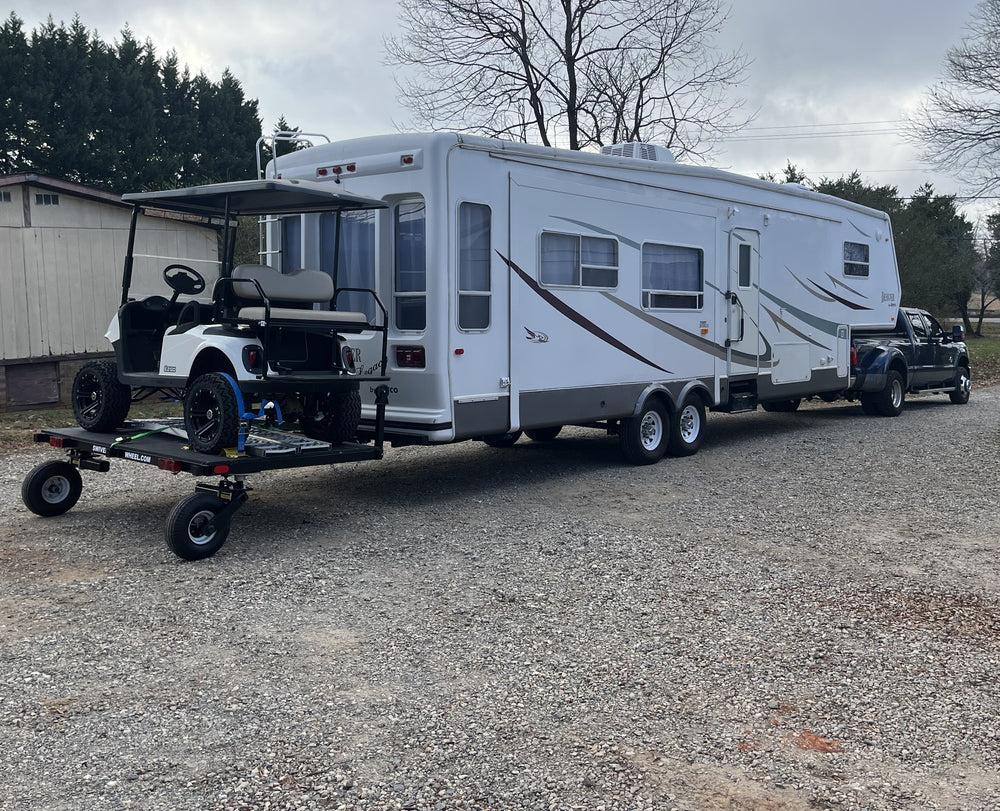

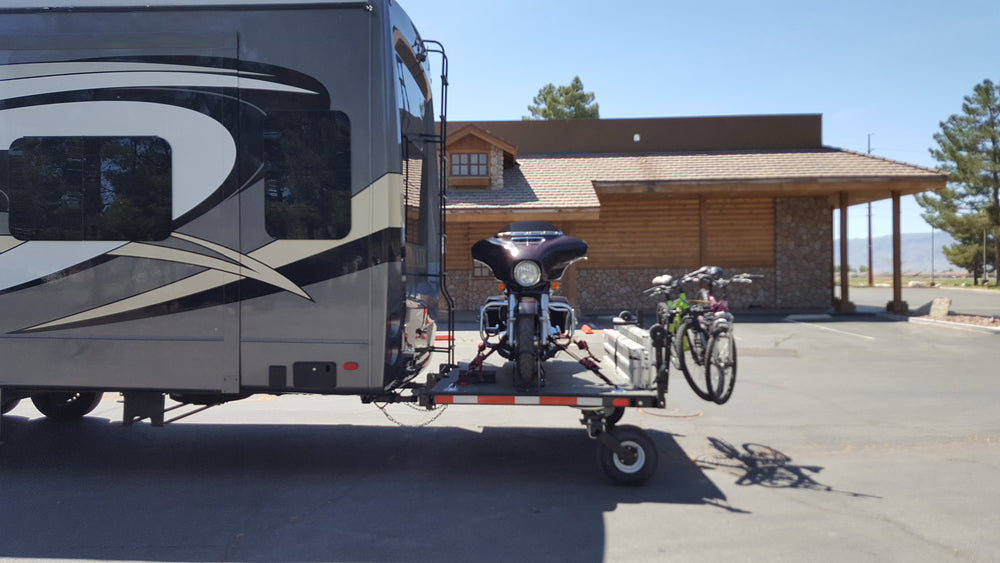

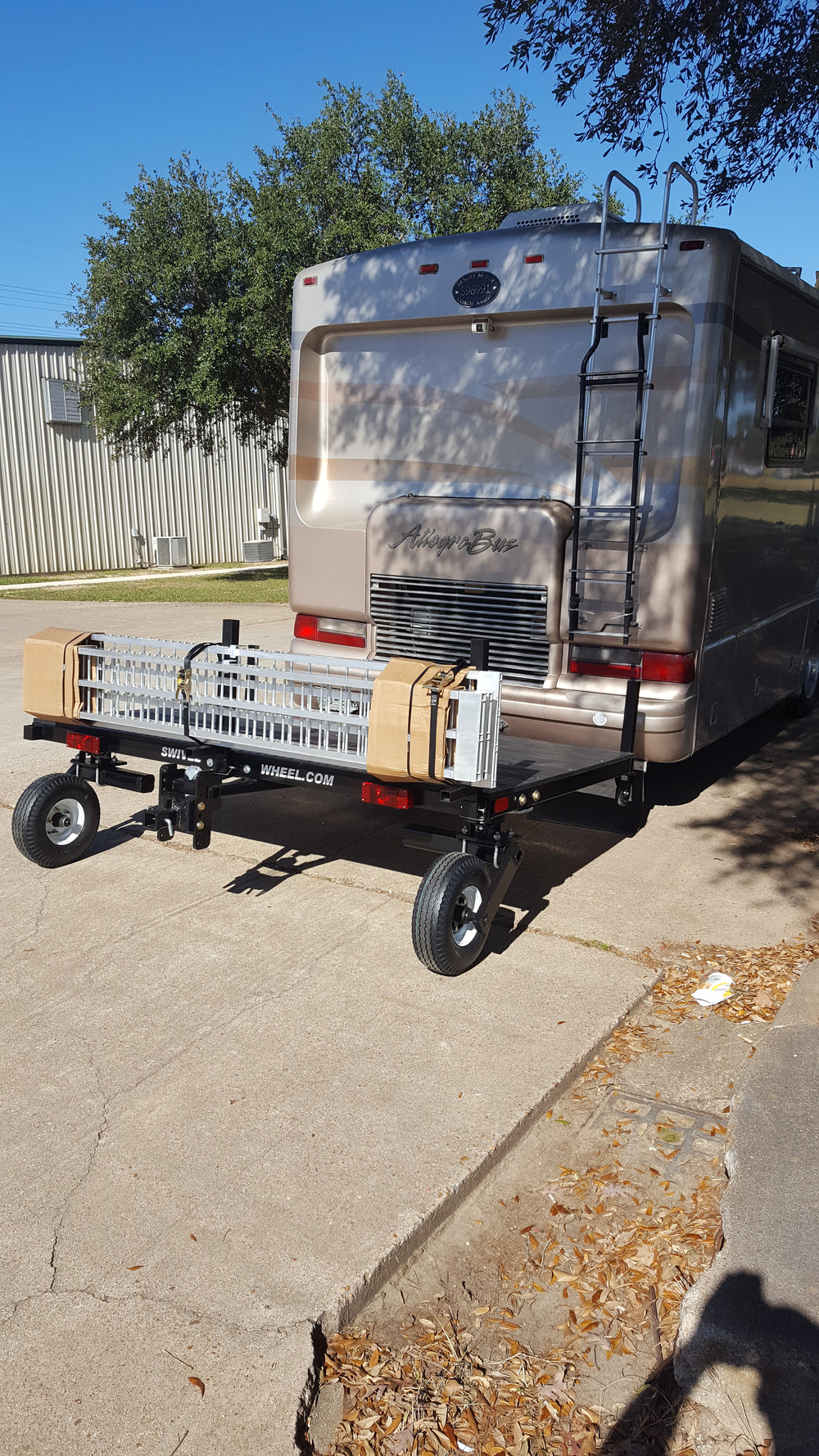

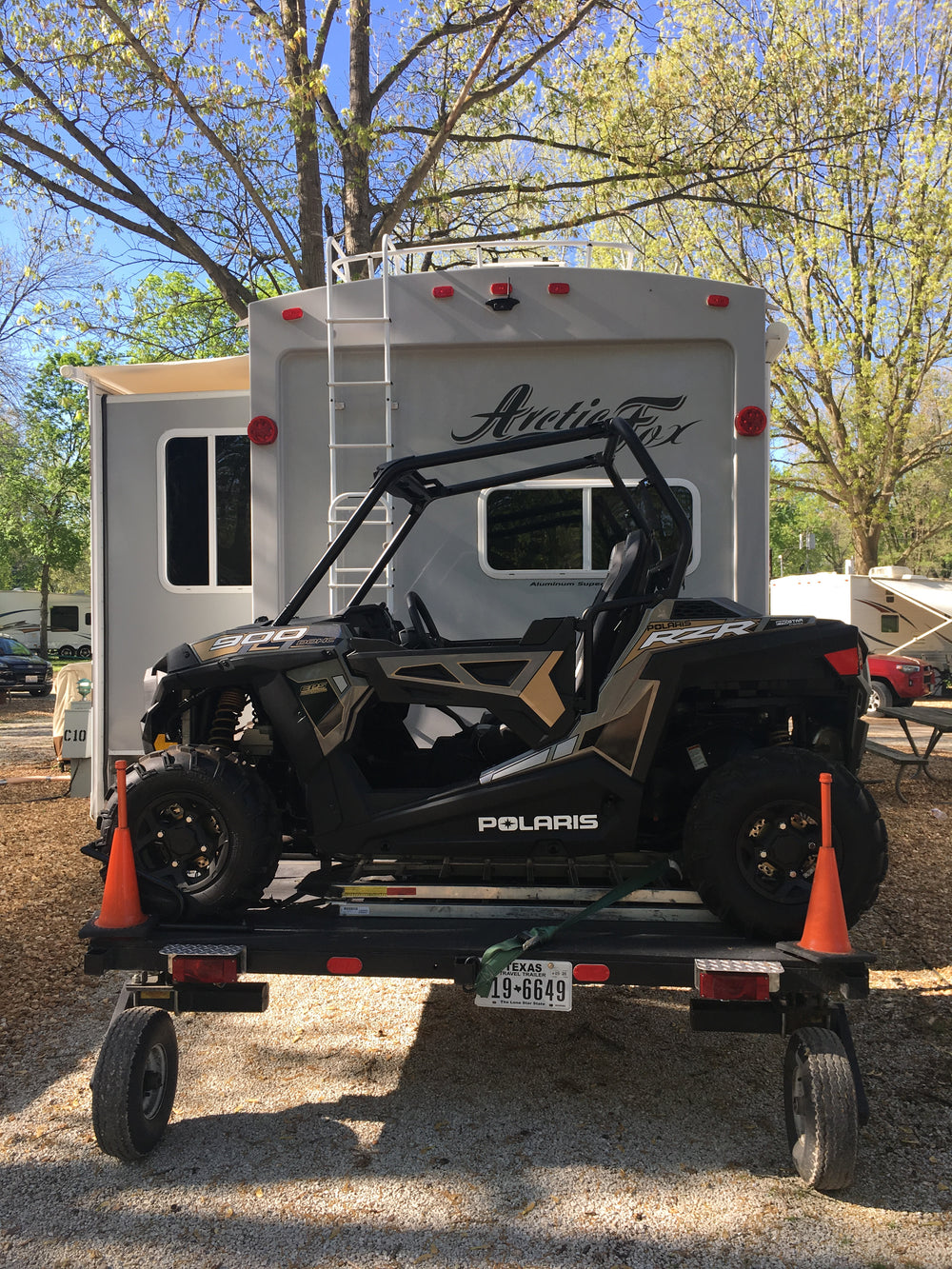

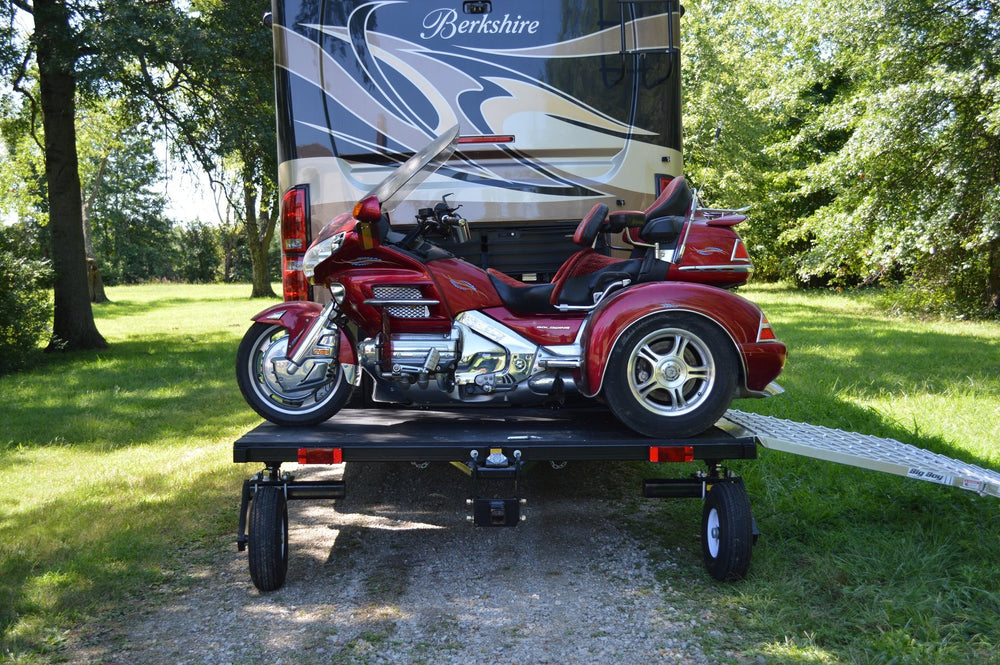

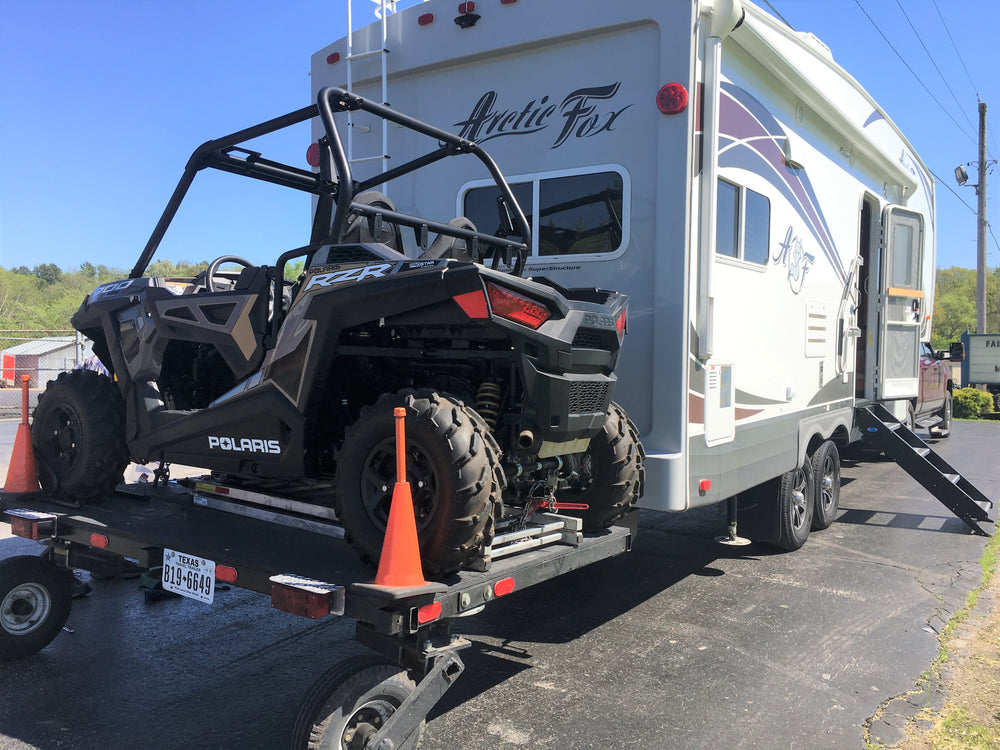

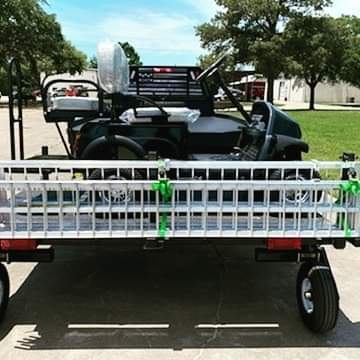

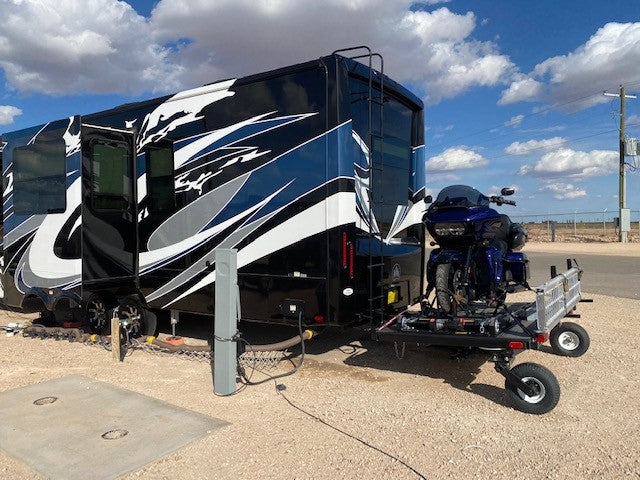

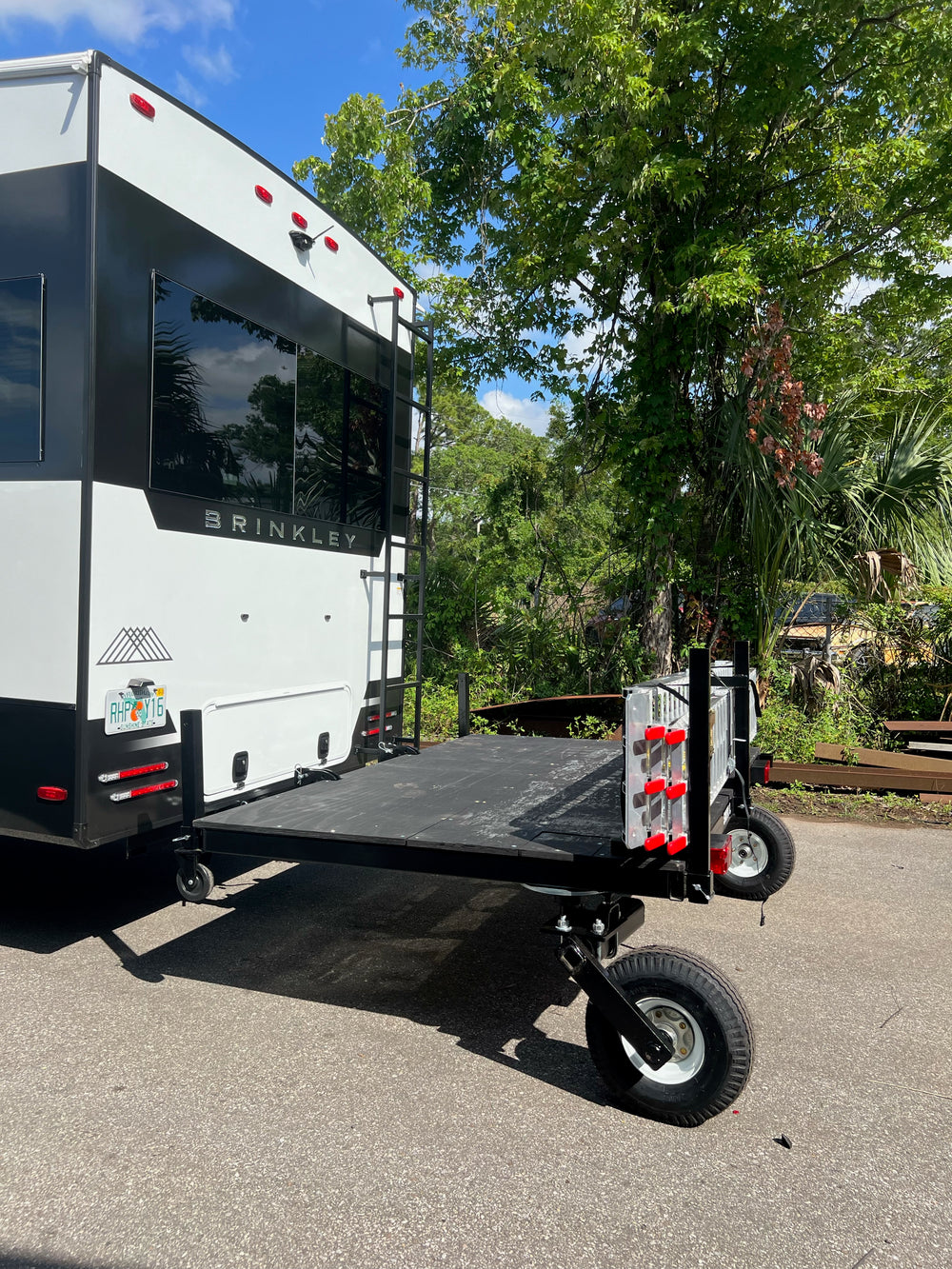

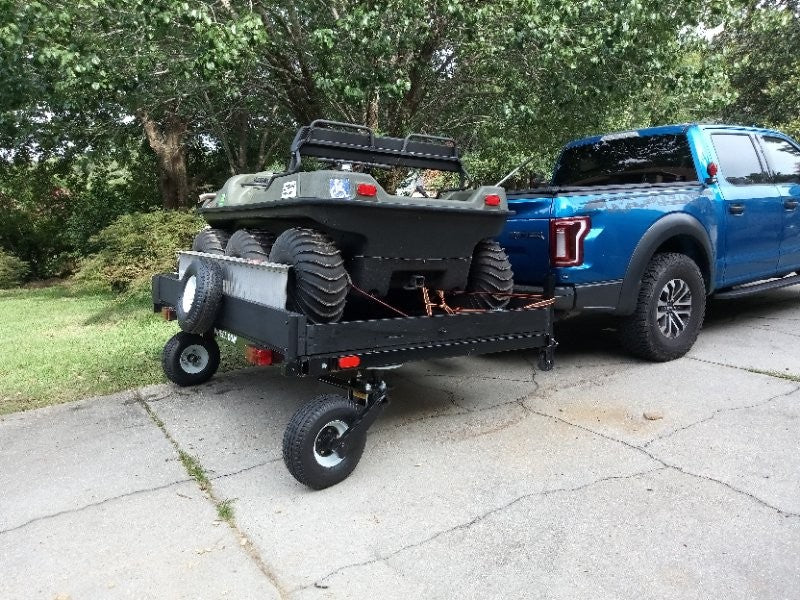

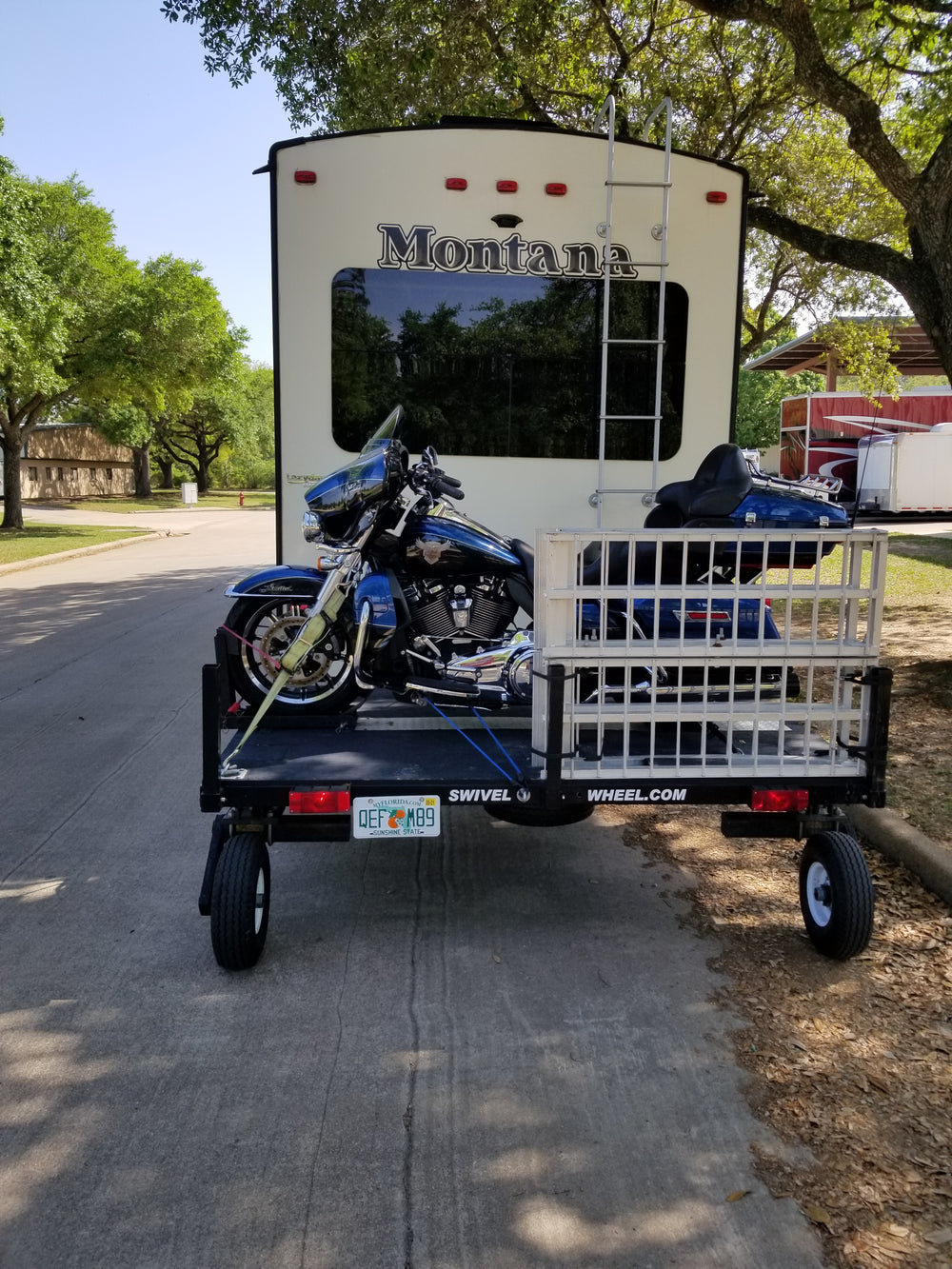

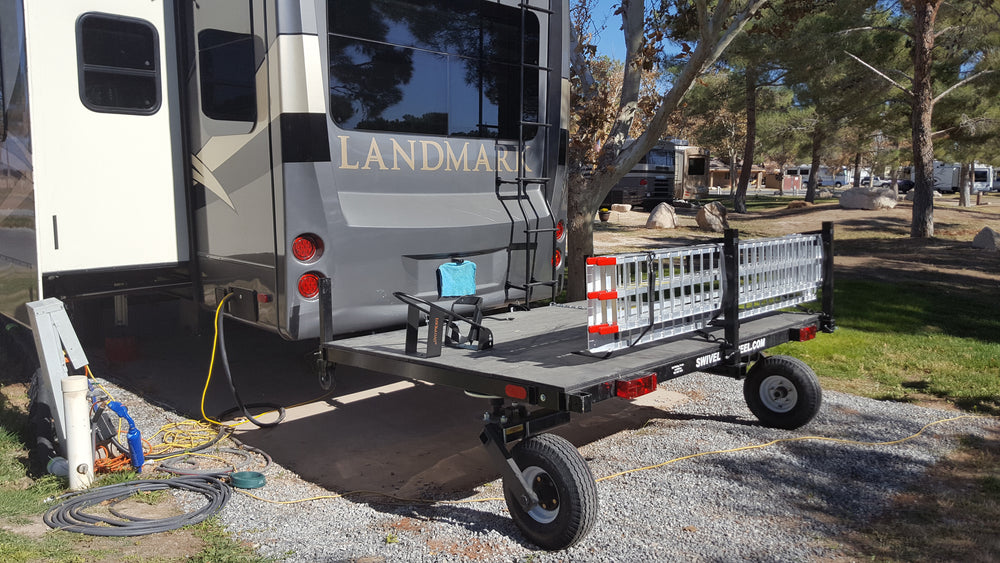

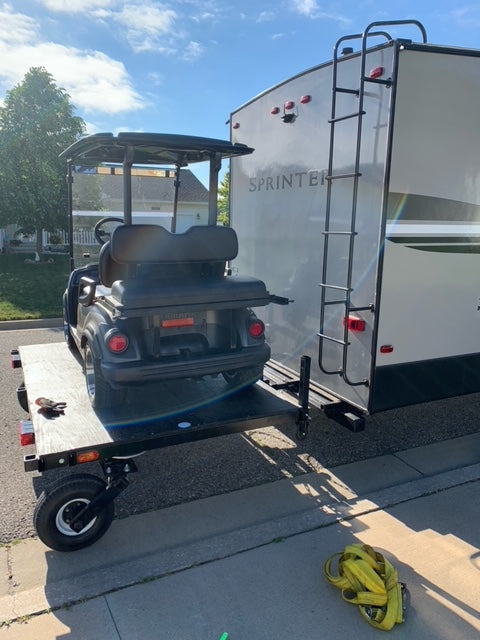

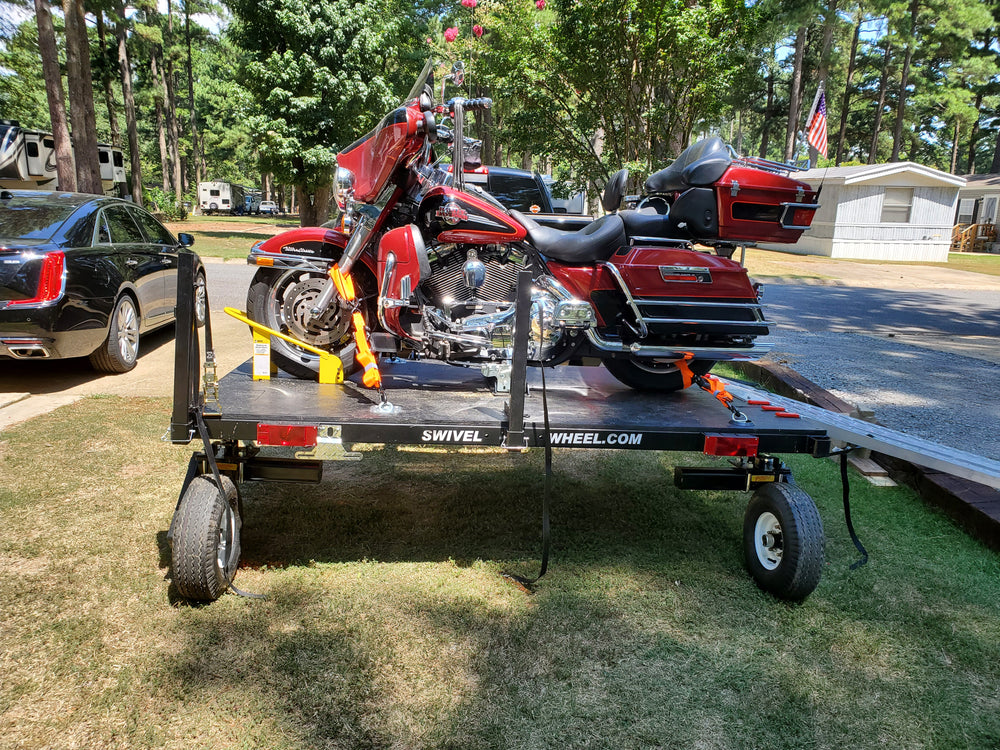

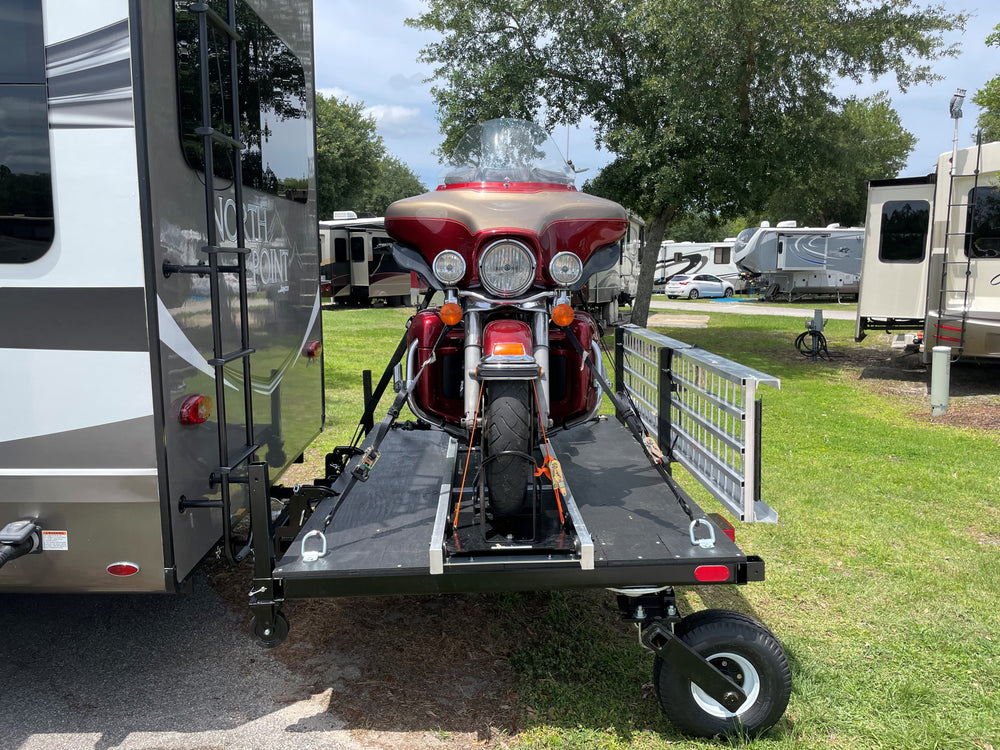

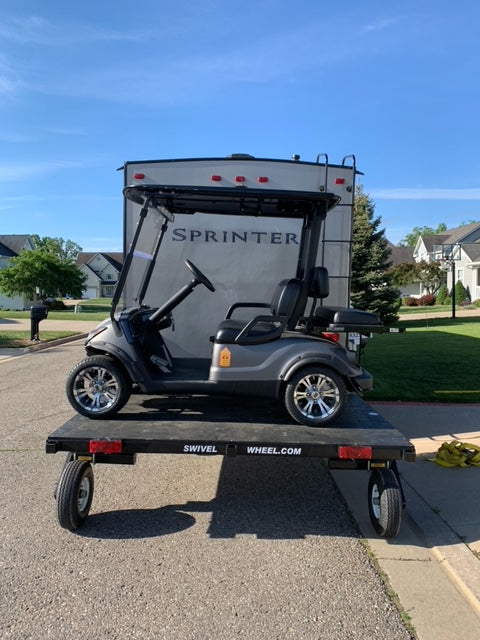

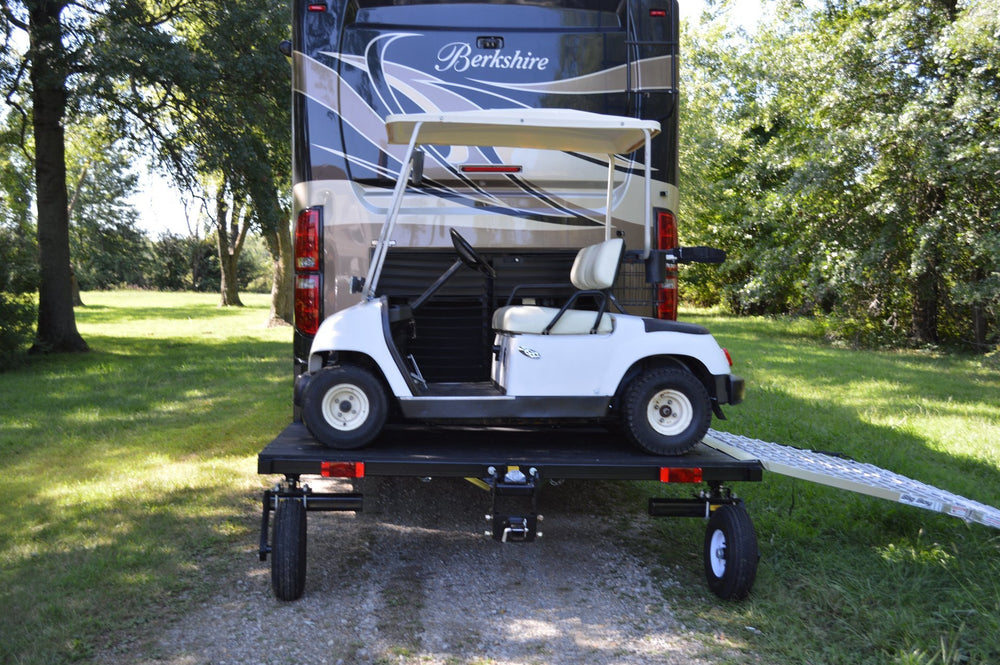

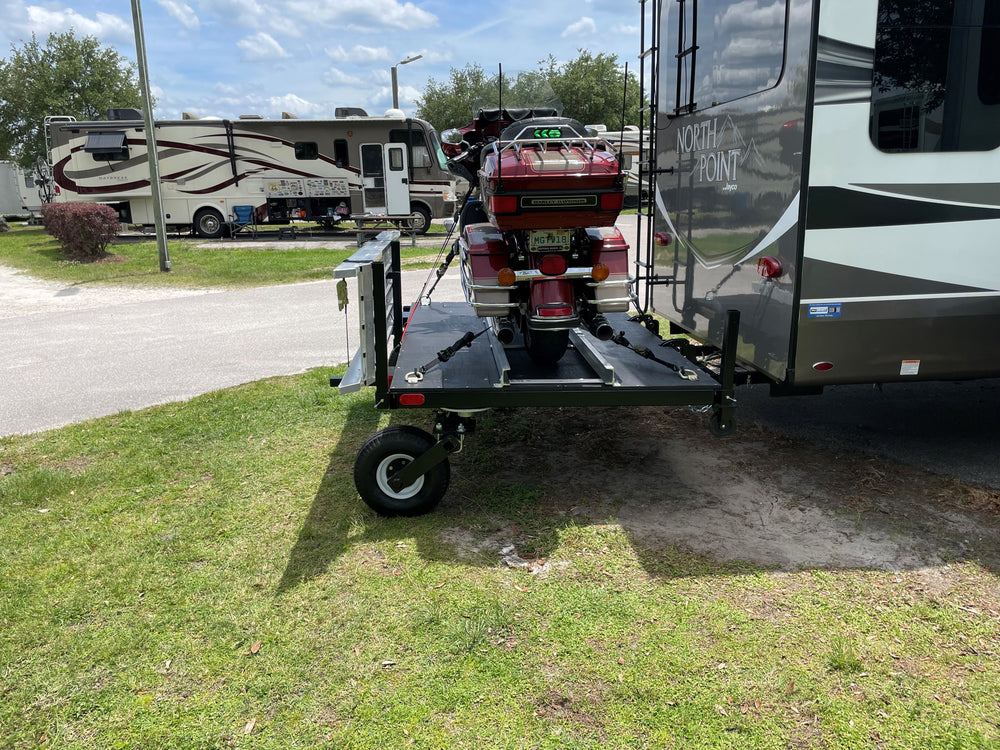

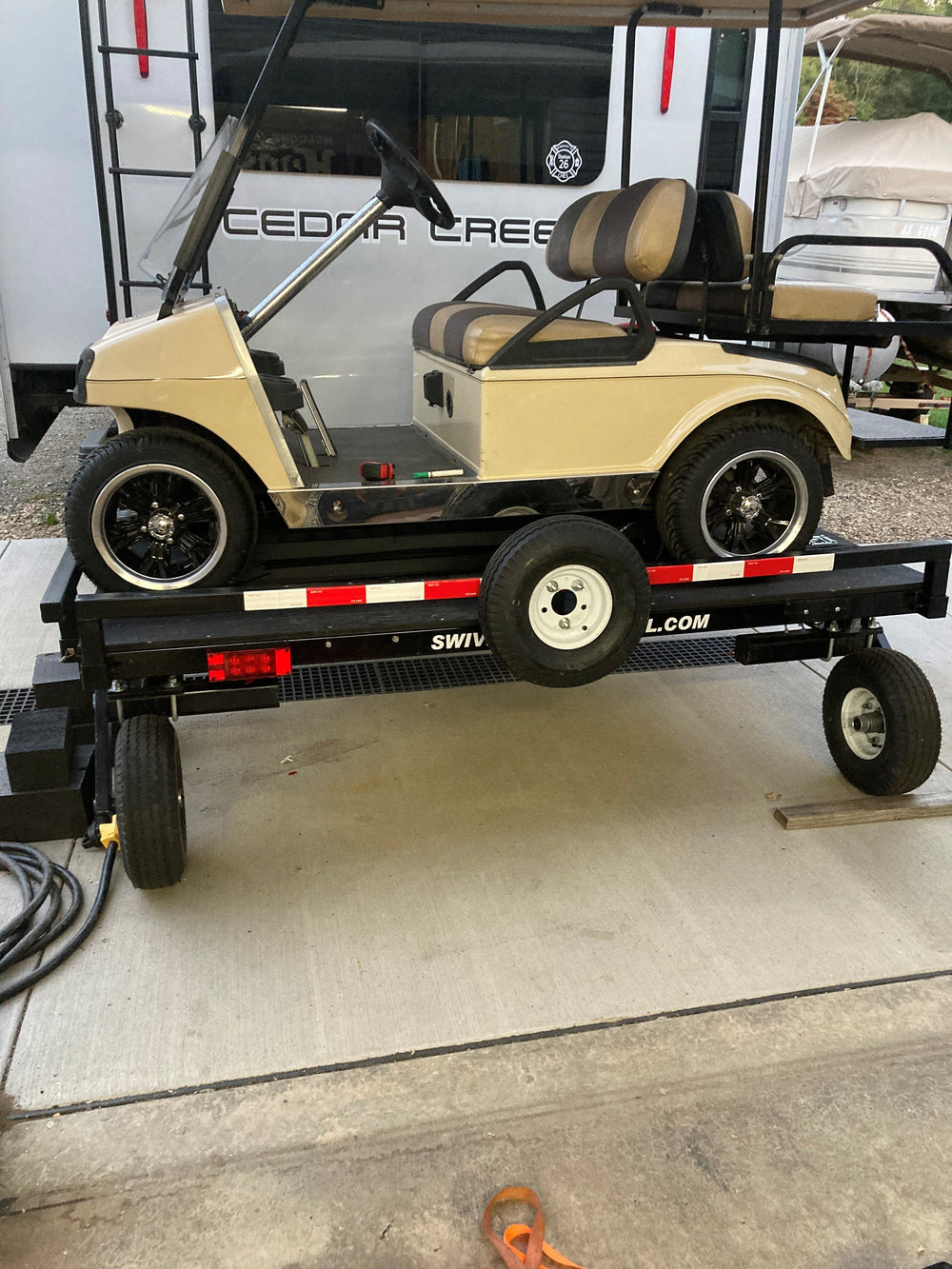

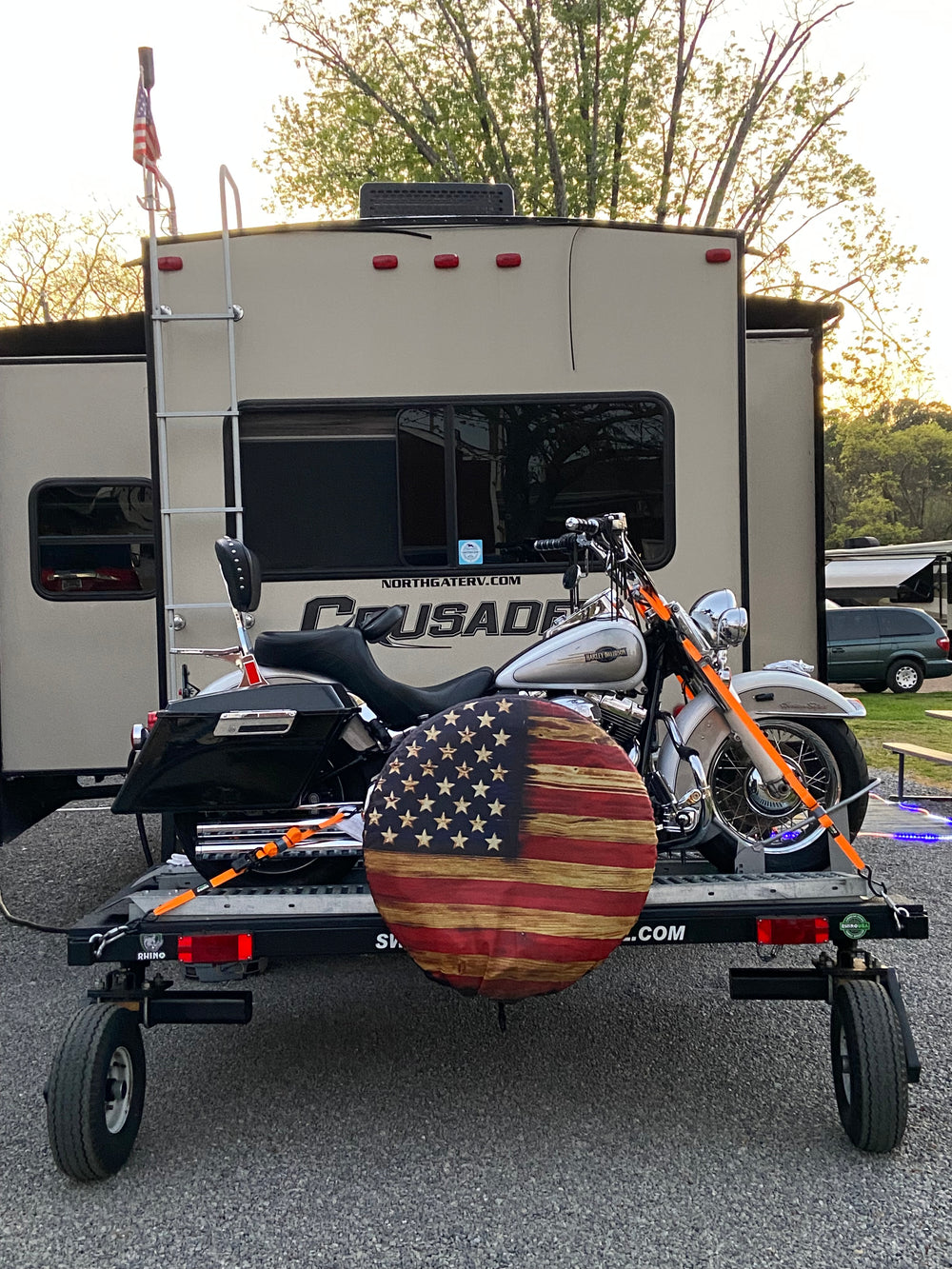

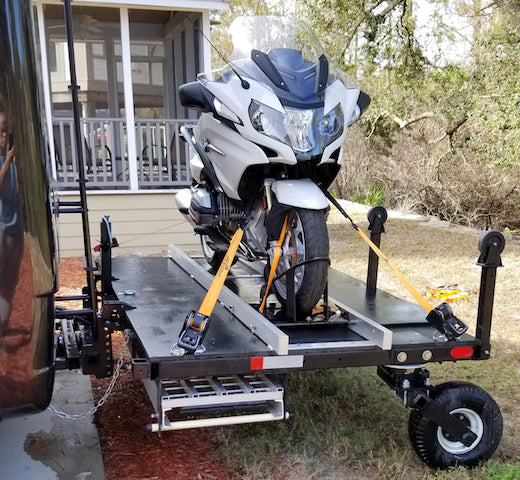

This system is the same as the Swivelwheel-58 with the exception of dual suspensions instead of one. The weight capacity changes to 1200 pounds with the dual wheel model. One other difference is that the DW-58 system requires the use of the dual point rotational hitch bar assembly that it comes standard with. The rotational hitch bar pivots from the back for road and entrance transitions, it also rotates left to right so both wheels stay on the ground at all times. The DW-58 will accommodate Motorcycles  Golf carts, Trikes, and Can-Ams. The system was designed to handle heavier loads. The DW-58 can also use the 6" extension this will allow you to extend the deck size.

Additional Options Include:

1.) Spare Tire and Wheel $85.00

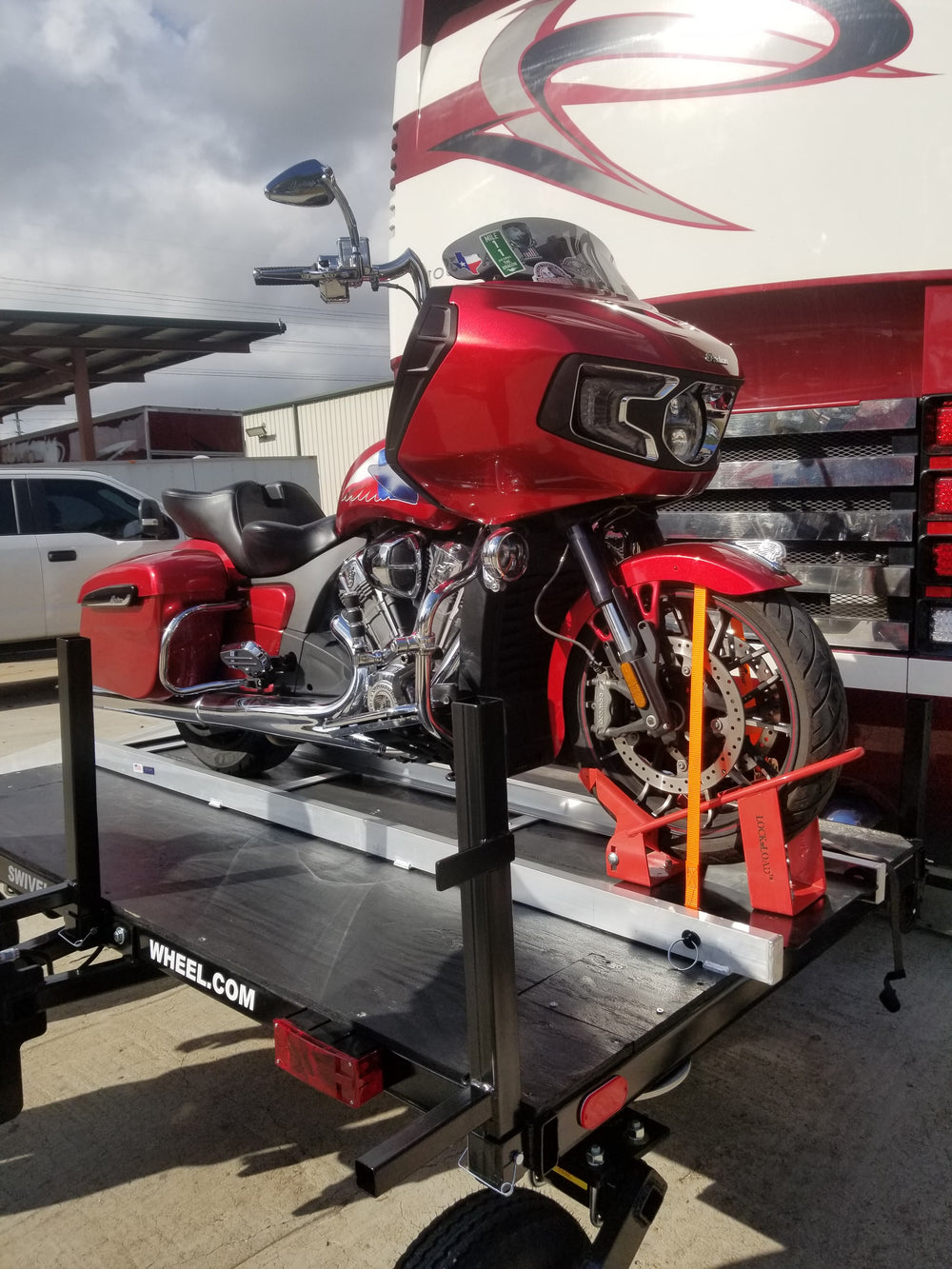

2.) Locking Motorcycle Wheel Chock $189.00

3.) Power Ramp Loader $795.00
4.) 3-Piece Loading Ramps $395.00
5.) 6-Inch Platform Extension $280.00

Swivelwheel Price List :

Swivelwheel 58DW Specs

Deck Dimensions:Width = 8' / Length = 5'
Deck Perimeter Style = Rectangular
Deck Height = Level at 25 3/4"
Decking Material = 3/4" Treated/Painted Plywood
Frame Materials = Welded Tubular Steel
Tie Down Locations = 2" x 2" Stake Receivers ( 3 on Front & 3 On Rear)
Suspension = Two Torsion Suspensions w/ Friction Plate & Pad
Wheel & Tire = Two 5.70 x 8 / C / 6 Ply / 910 Lbs / 75 PSI
DOT Lighting = All Swivelwheel Products meet DOT Lighting Regulations)
Tow Vehicle Mounting = Dual Point Hook-Up with Dual receiver insert. Two additional receivers are shipped with the unit to be installed onto the tow vehicle,

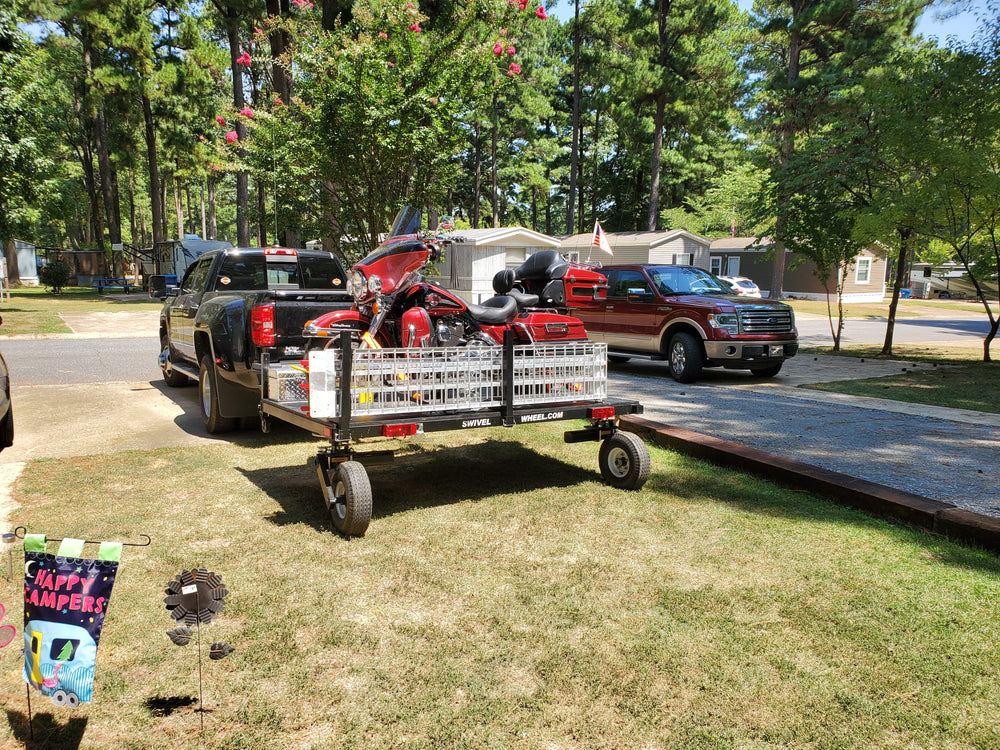

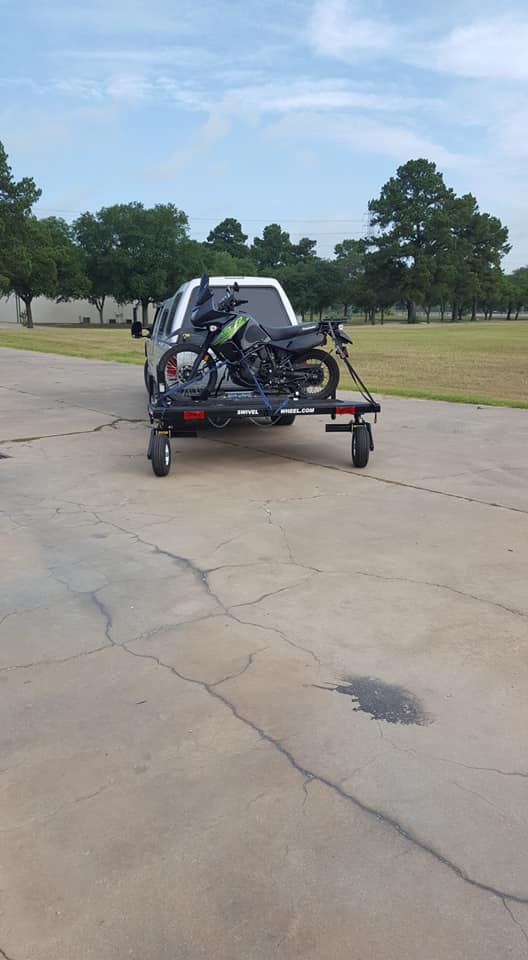

Tow Vehicle Compatibility = All Full Size Pick-Ups and SUV's, Class-A and Class-C Motor coaches, Fifth Wheel Trailers
Weight Limit 1200 Lbs
Loading Direction = Loads from the street or curb side or from the rear.
Flip up deck feature = No. (Single Wheel Models 46-58 only)
Frame Finish = Black Semi-Gloss Powder  Coat
Jack stand legs with wheels  = Yes
Certification = 1.) Includes Manufacturers Certificate of Origin
2.) Includes SAE VIN ( Vehicle Identification Number) Sticker









In Depth Information about Swivelwheel Transportation Systems:

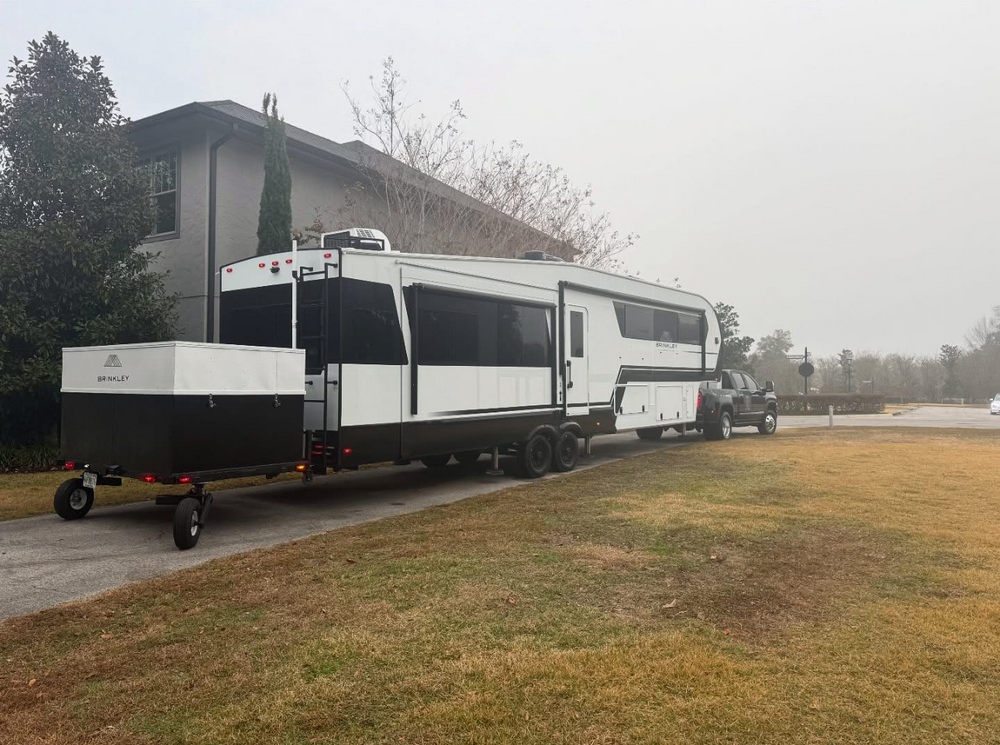

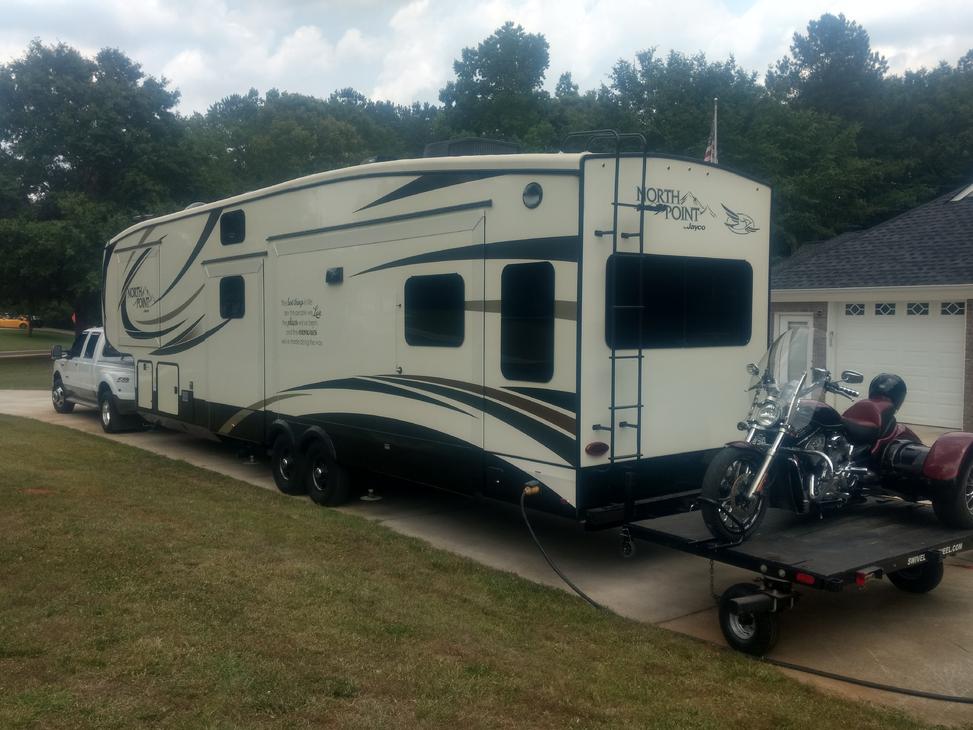

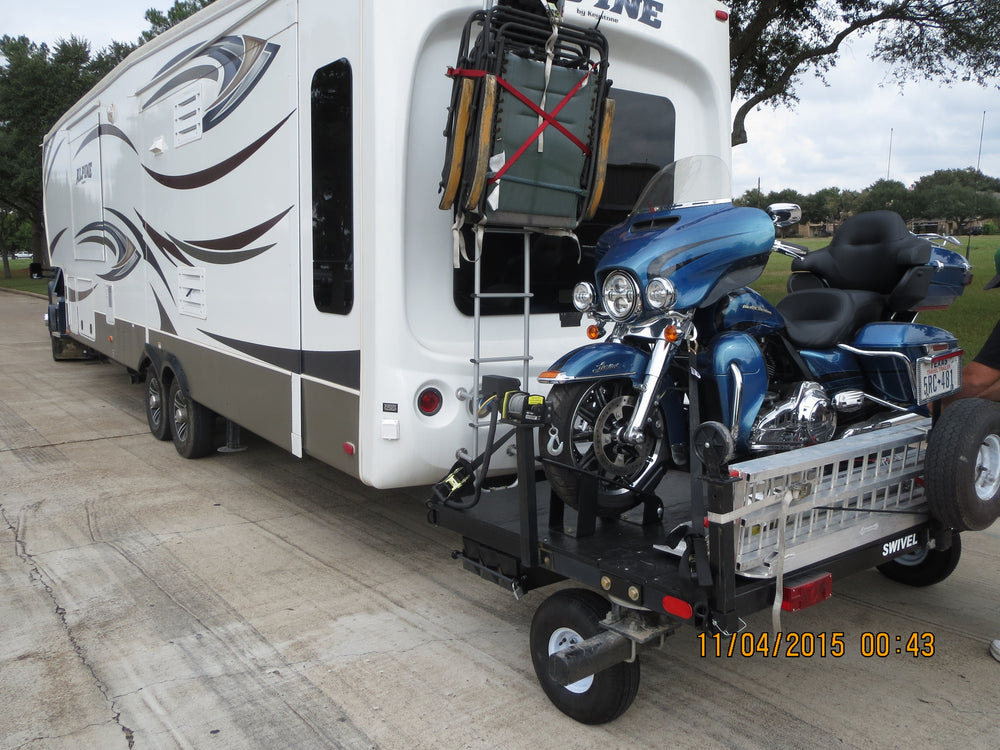

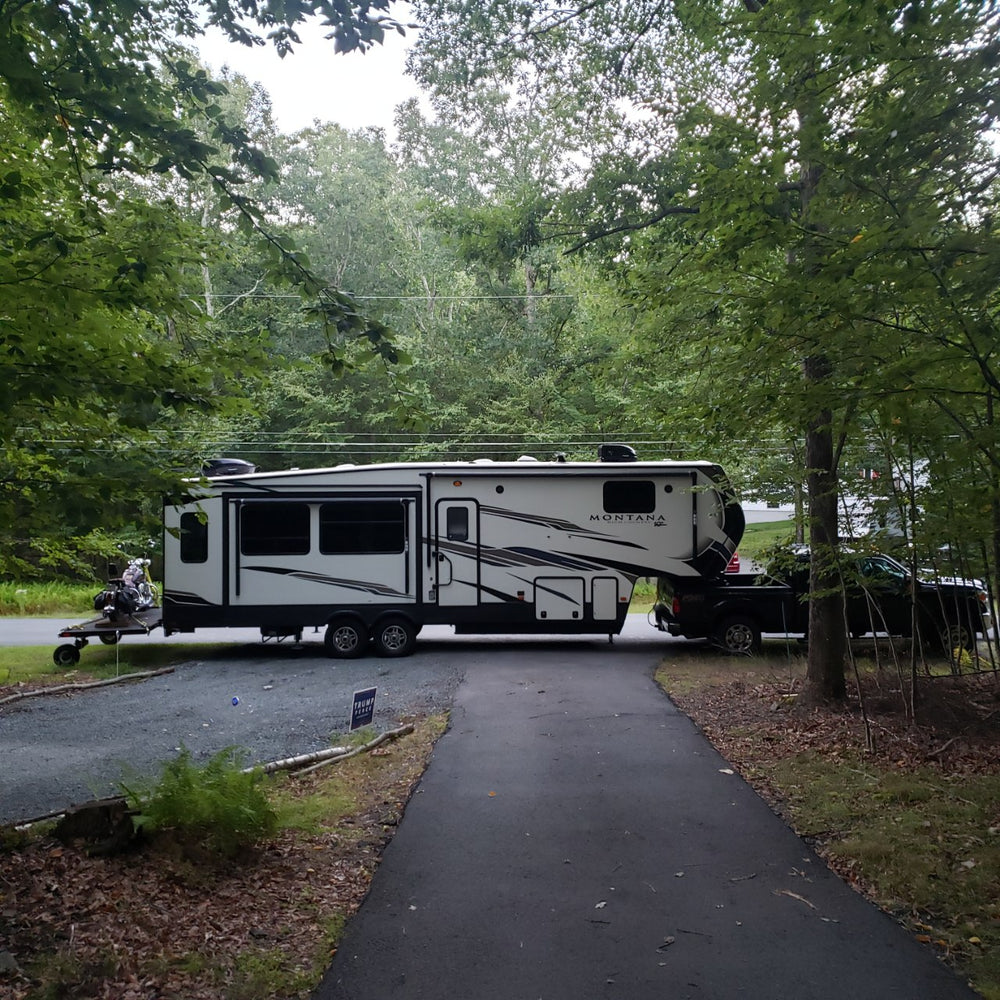

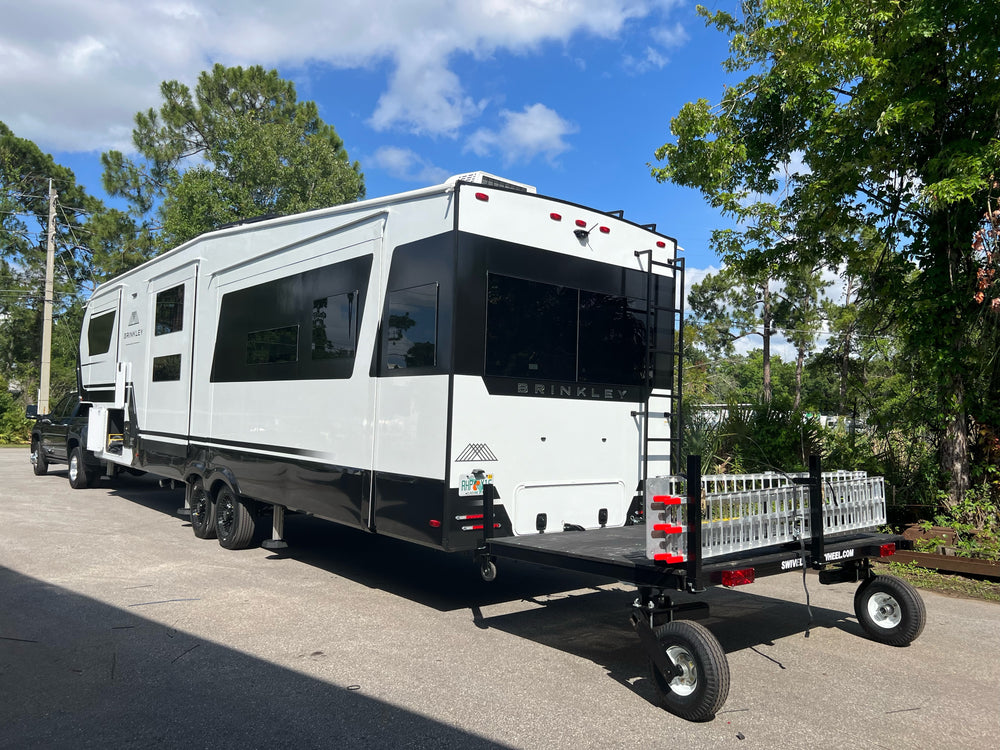

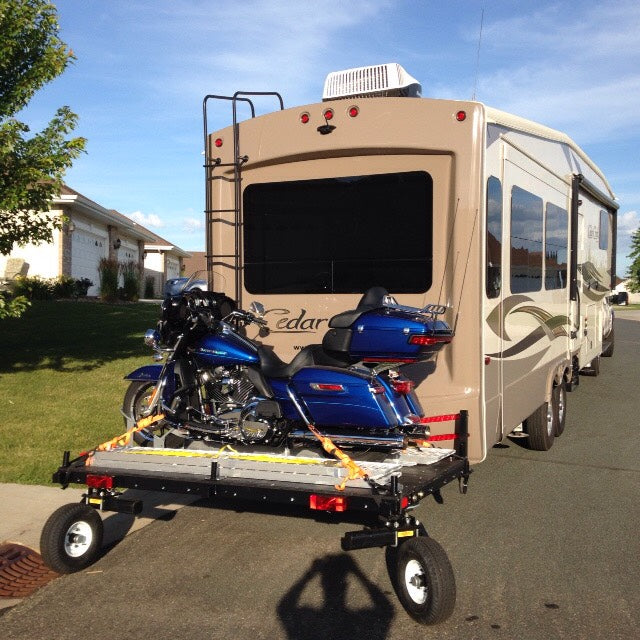

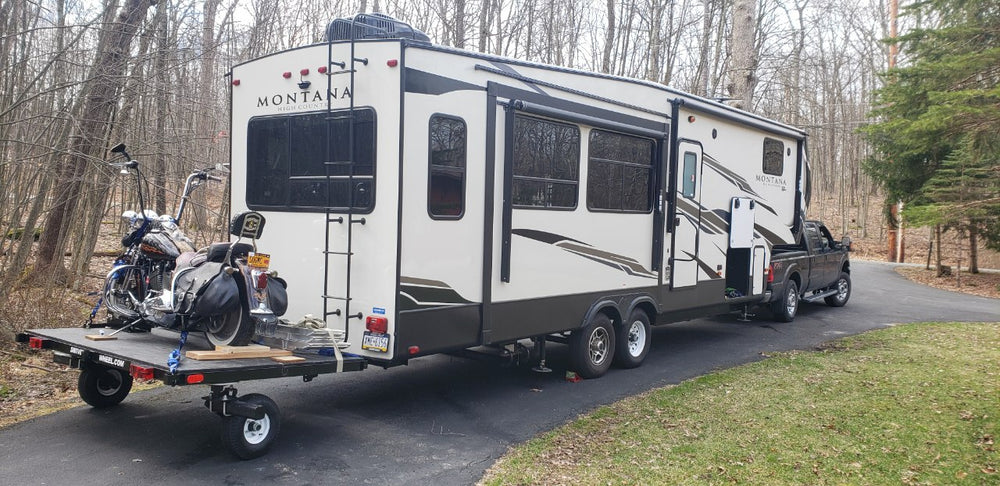

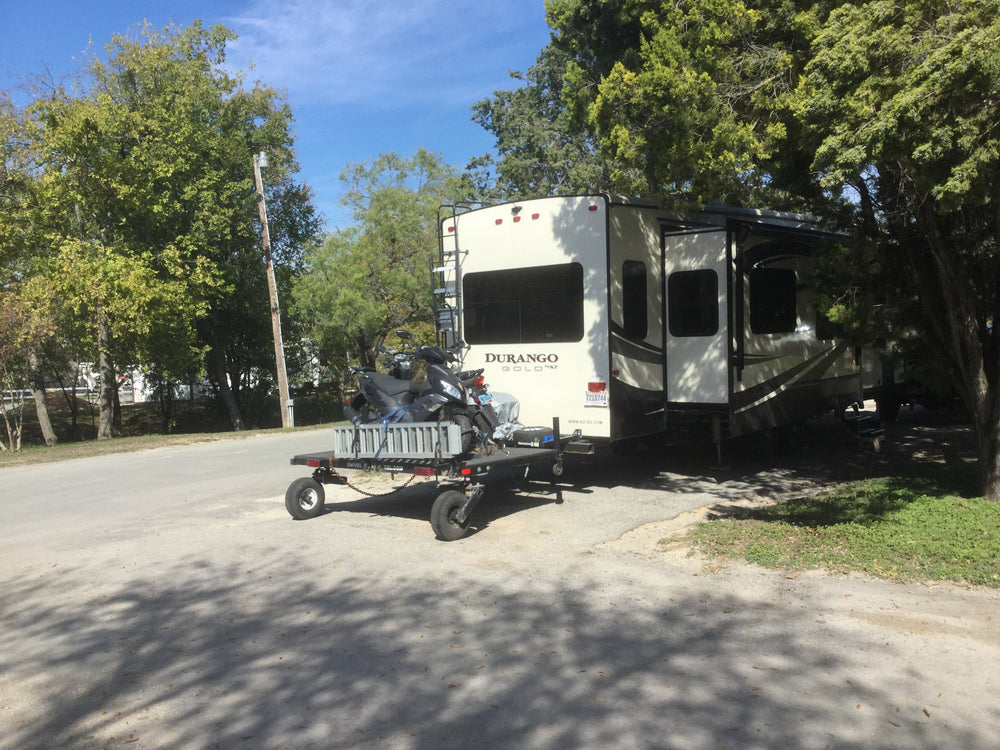

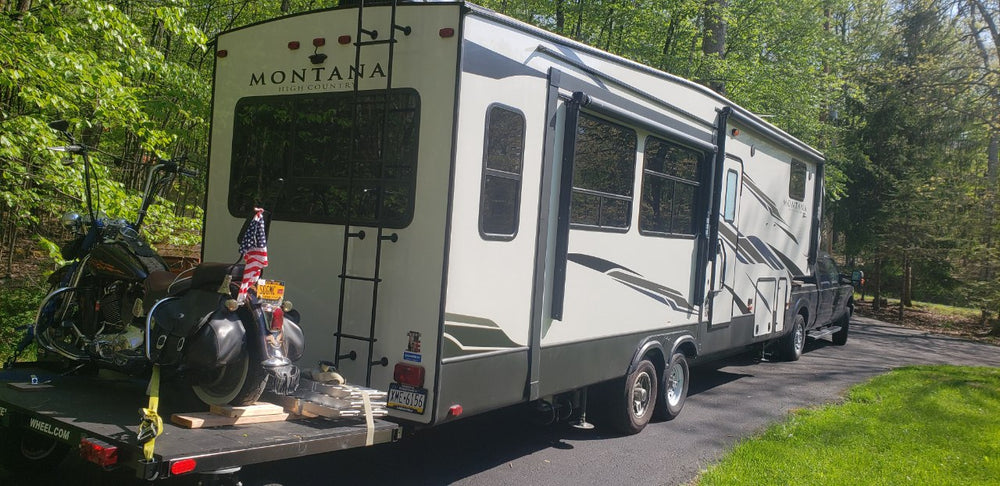

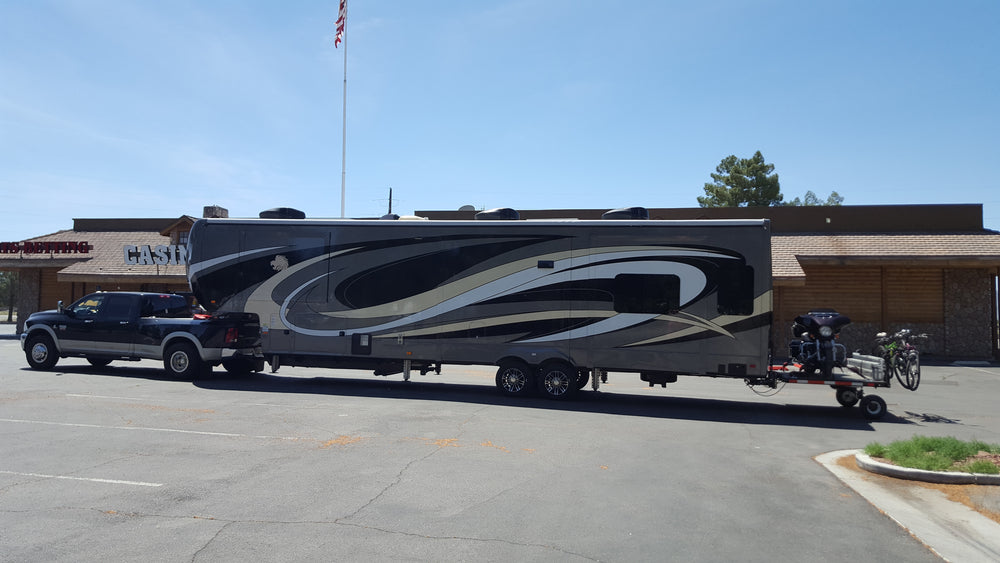

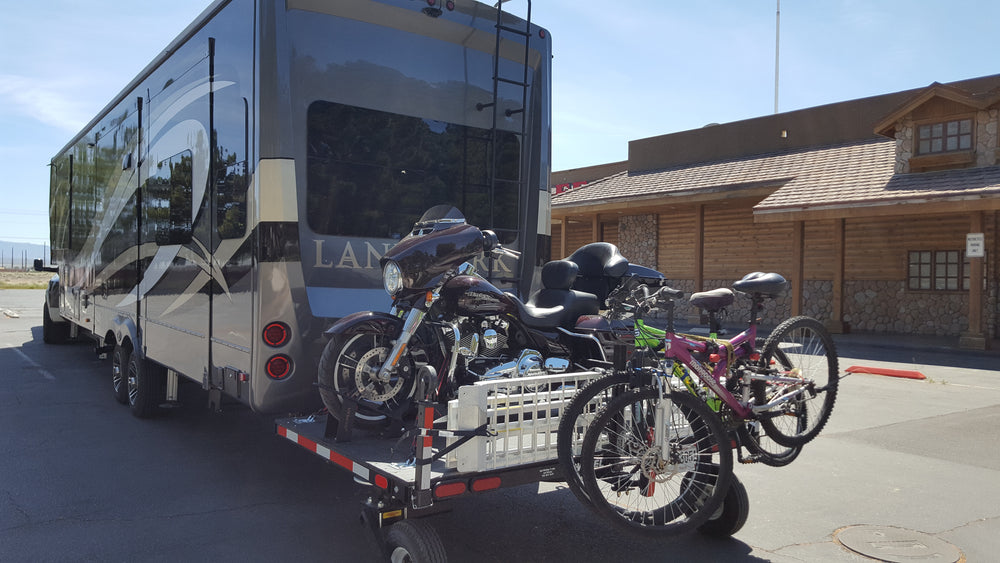

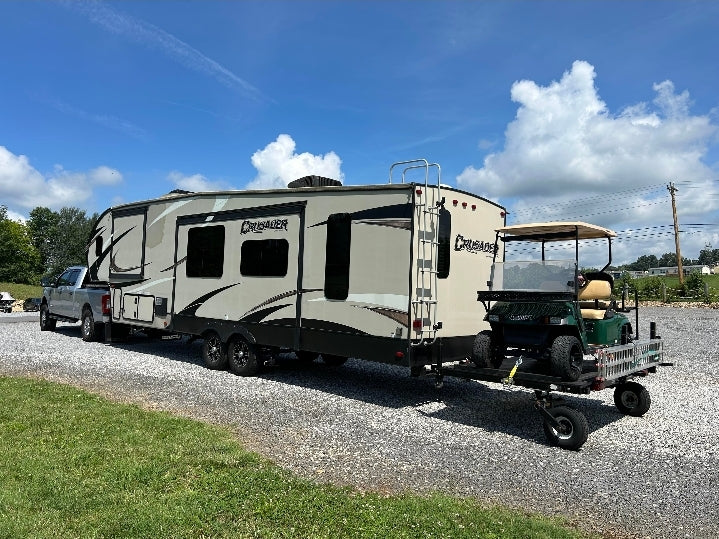

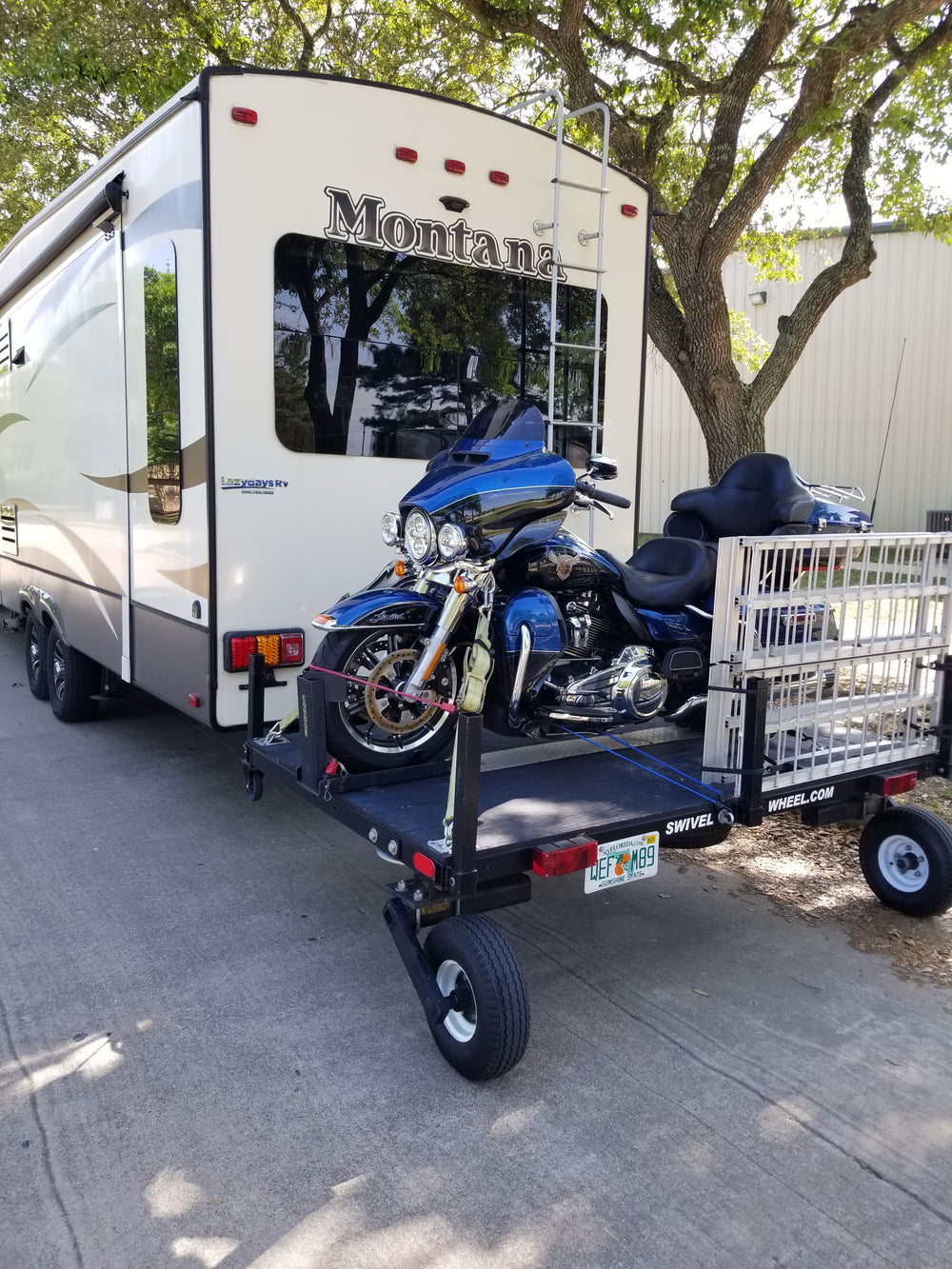

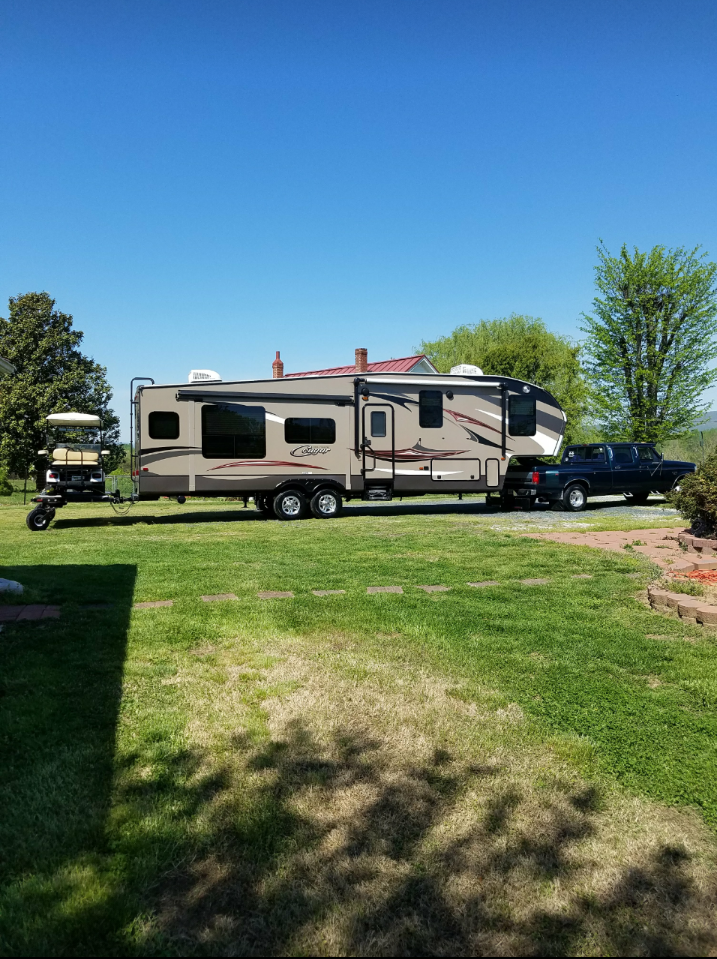

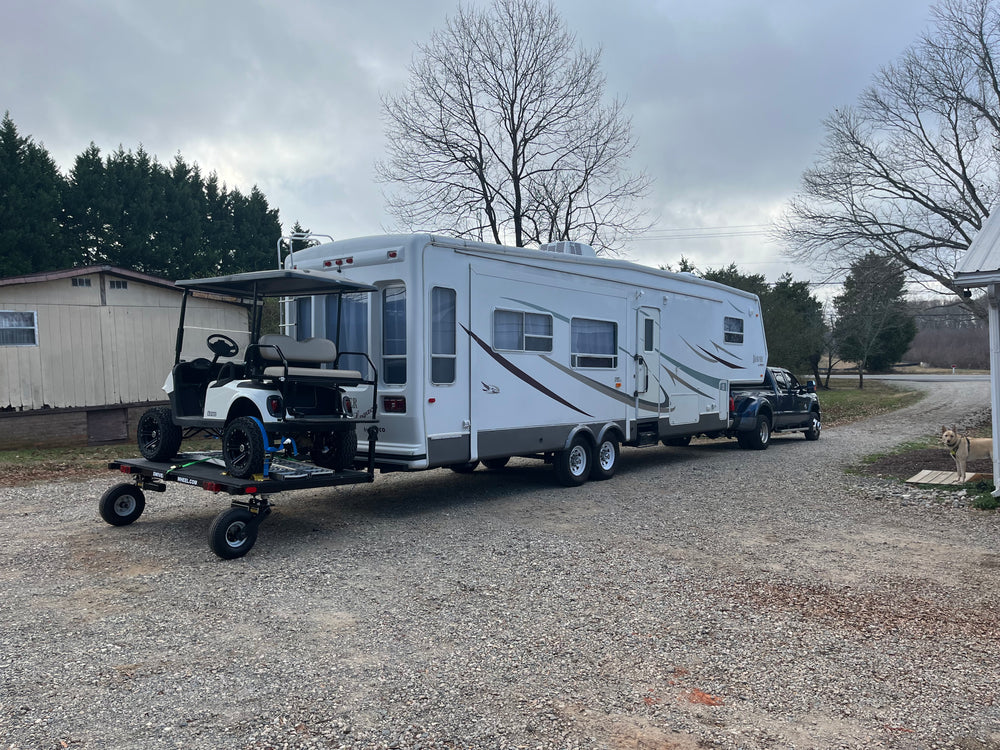

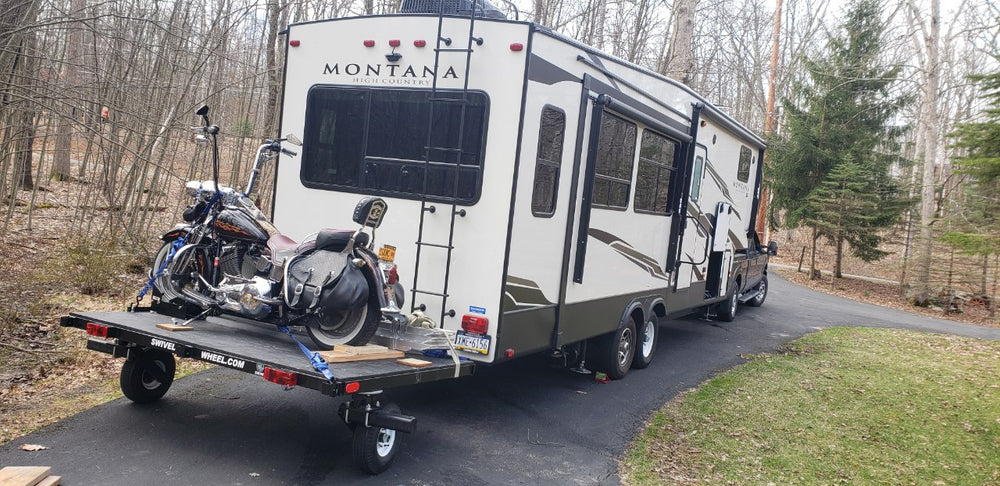

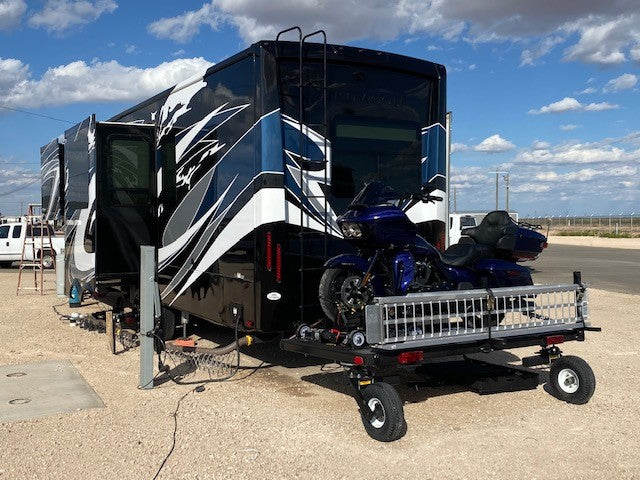

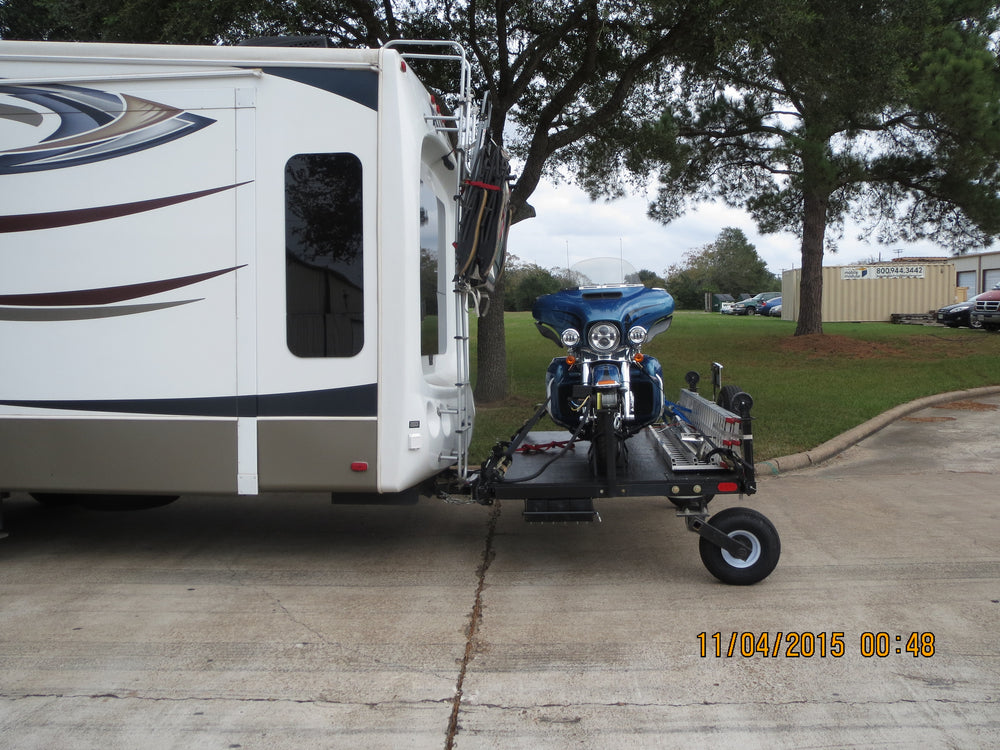

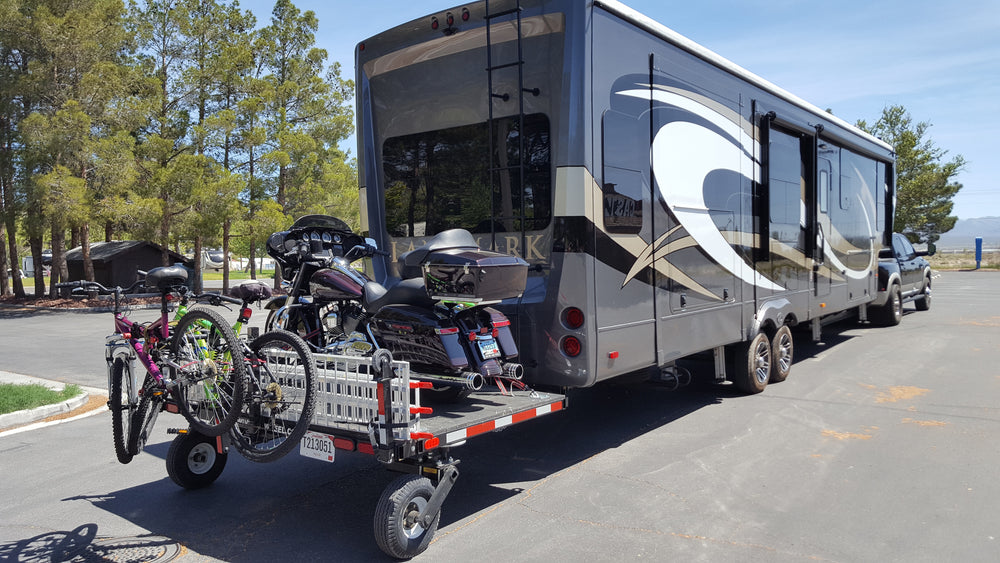

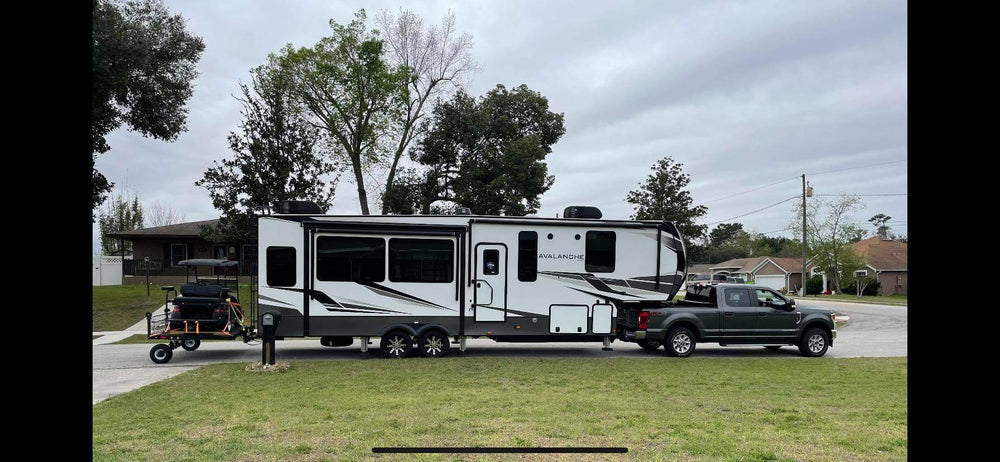

The Swivelwheel transport system uses a caster wheel system. The Swivelwheel is compatible with fifth wheel trailers and motor homes (Class A, B and C) That have a Class III Receiver or more.

Fast Master Products have five different Swivelwheel models that range from our ECO to our Tandem Tow with weights ranging from 500 lbs to 1200 lbs.

Note: Be aware! Since the introduction of the Swivelwheel product line and the rise in popularity of the Swivelwheel, manufactures have copied our Swivelwheel name and are posting it on their websites, calling their products Swivelwheels. Accept no substitutes. The Swivelwheel Systems cannot jackknife or sway unlike traditional trailers. The Swivelwheel system will always track with the tow vehicle whether in traveling mode or backing up. This is especially important when attached to a fifth wheel and motor home. Unlike a trailer that must be disconnected prior to backing up a fifth wheel or motor home.

Contrary to popular belief in some chat rooms, Fast Master Products Swivelwheel Systems do not have what they call caster flutter while driving down the road at any speed. Our wheel assemblies are engineered to remove the flutter that other manufacturers have. The systems also include an adjustable friction pad to alleviate any chance of flutter due to outside causes.  All swivelwheel systems come standard with front removable jack stand legs with wheels for ease of moving around while disconnected from tow vehicle.

The swivelwheel systems incorporate a torsion suspension, which is a proprietary product designed by Fast Master Products Inc. The wheel assemblies utilize 5.70-8 D 8 PLY and a 5.70-8 C 6 Ply which are highway rated tires. The front deck height on all Swivelwheel Systems are adjustable to accommodate the receiver height on the tow vehicle.

Swivelwheel Towing Requirements :

It is up to the Swivelwheel system owner to evaluate the frame and capacity of the tow vehicle. All Swivelwheel Transport Systems utilize a class II, III or IV receiver package that is installed onto the tow vehicle.

(Fast master products is not responsible for damage to a tow vehicle that does not have the capacity to utilize the Swivelwheel system.)

Chassis Frame needs to be able to support the weight of the system plus any added loads. All Swivelwheel systems will have about a 50/50 split for tongue weight. Installing a Swivelwheel system onto a chassis frame that does not have the capacity to handle a Swivelwheel system could result in damage.

We always inform the customer of the requirements of the tow vehicle. The Swivelwheel was designed for fifth wheels trailers and motor homes(Class A, B, and C) coaches.

Note: Specs for fifth wheels must be 30 ft or more with a dry weight of 10,000 lbs or more anything under that could cause unintended effects to the fifth-wheel. Loading of the platform has a effect on the handling of the system. The load should be centered as much as possible. This distributes the weights evenly between the fifth wheel and Swivelwheel tire.

A frequent question asked is if the Swivelwheel system is legal to tow in all states. There are basically 22 states that do not allow double trailer towing, some of them call it triple towing. We consider the system an extension of the Fifth wheel or motor home. (Not  a Trailer).

Although we do not agree, The State of New York has decided to re-class our swivelwheel system therefore, it could fall under the double/triple towing law.

A trailer is classified by a ball mount, our Swivelwheel system does not utilize a ball mount. There are other classifications but the Swivelwheel just does not meet them. For more information please call our toll free # 1-866-794-8357 or Email: info@cruiserlift.com.
