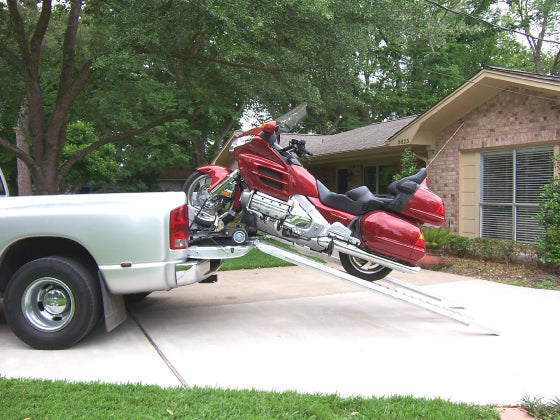

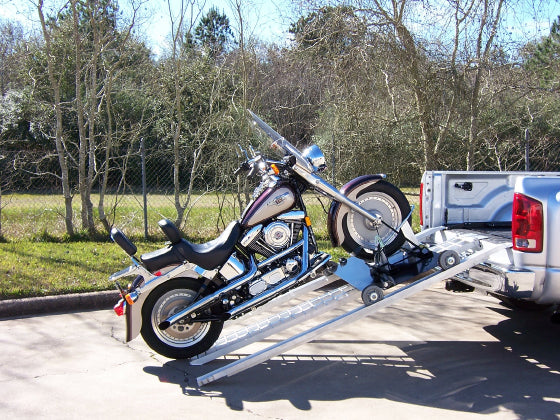

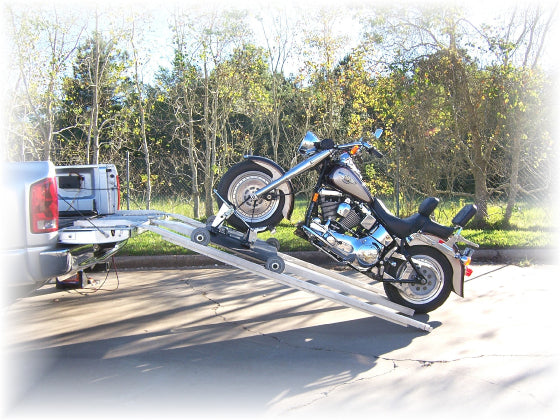

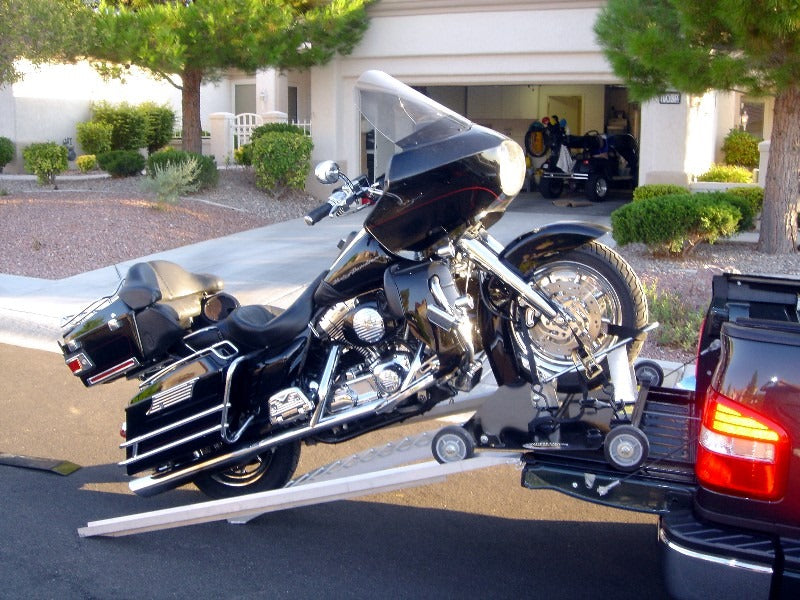

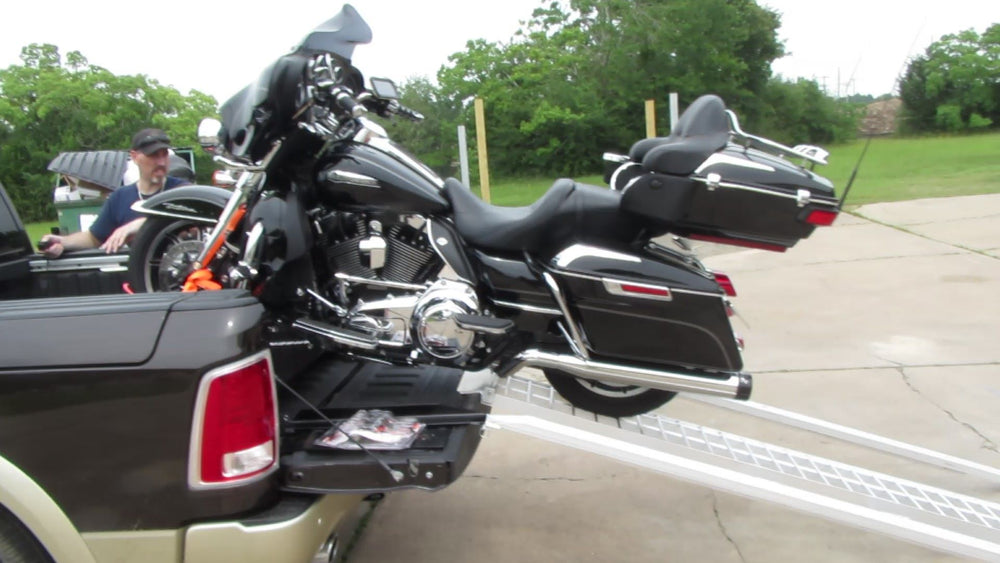

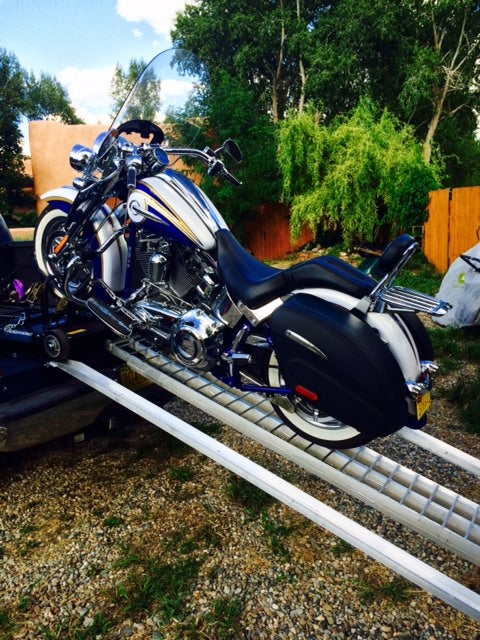

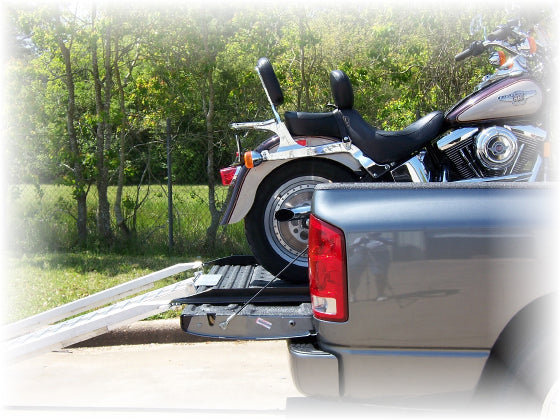

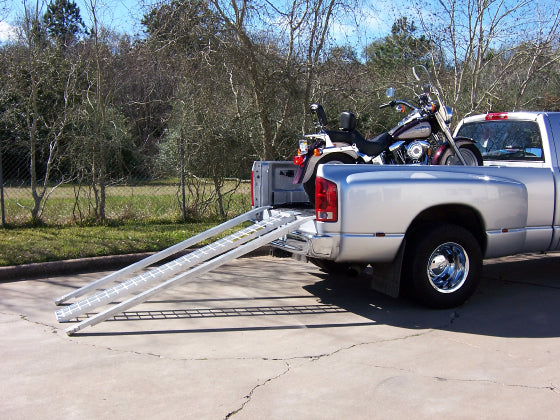

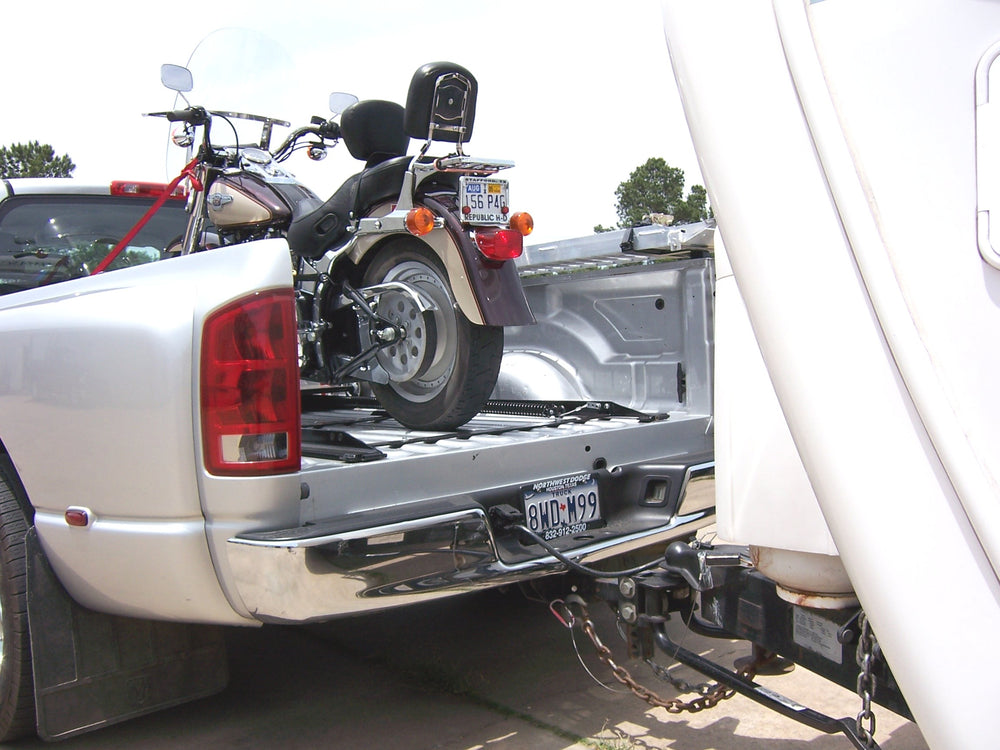

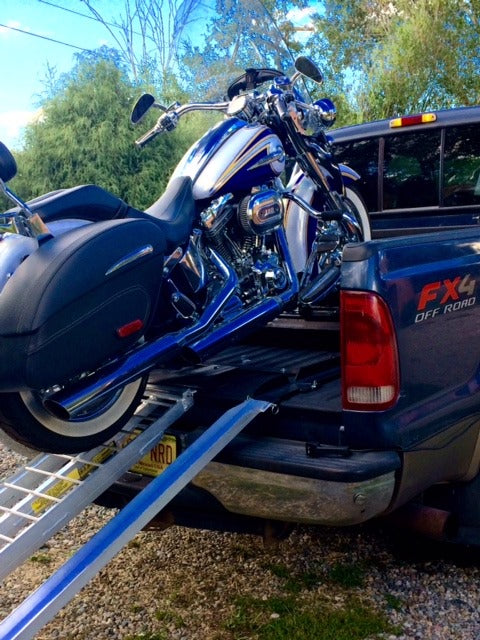

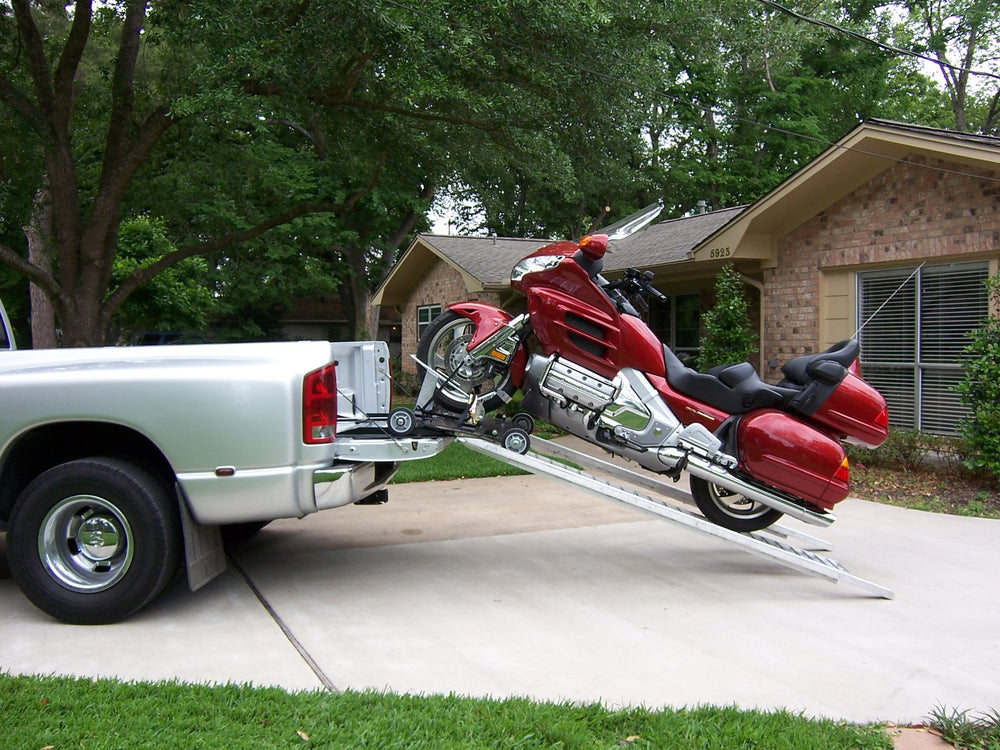

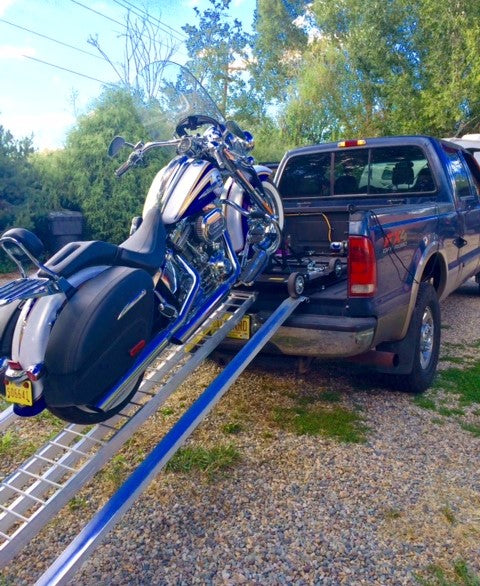

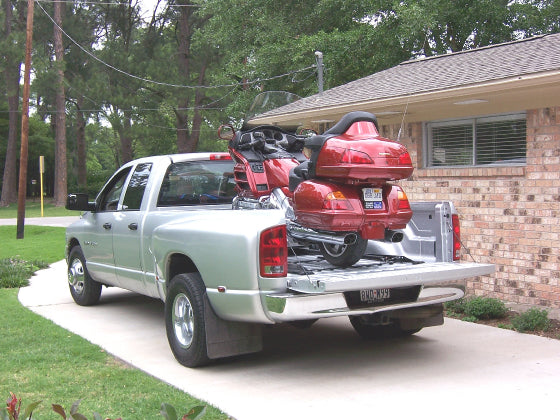

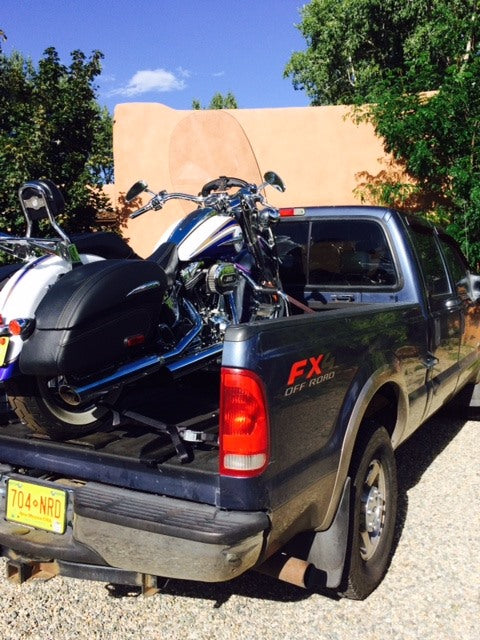

The Cruiser Ramp Pick Up Loader was designed to be a effective way to load and transport a full size motorcycle in the bed of a pickup truck.The pickup loader eliminates the use of boards and backing the vehicle into a ditch to load the motorcycle.

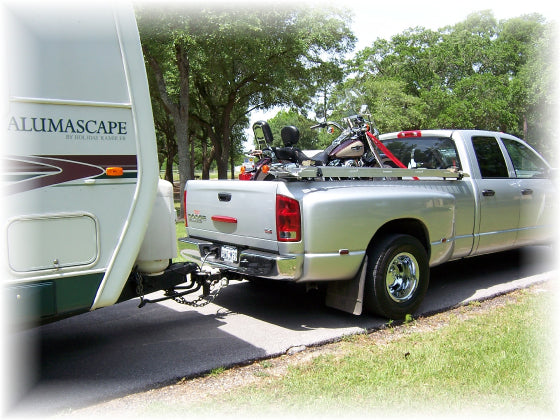

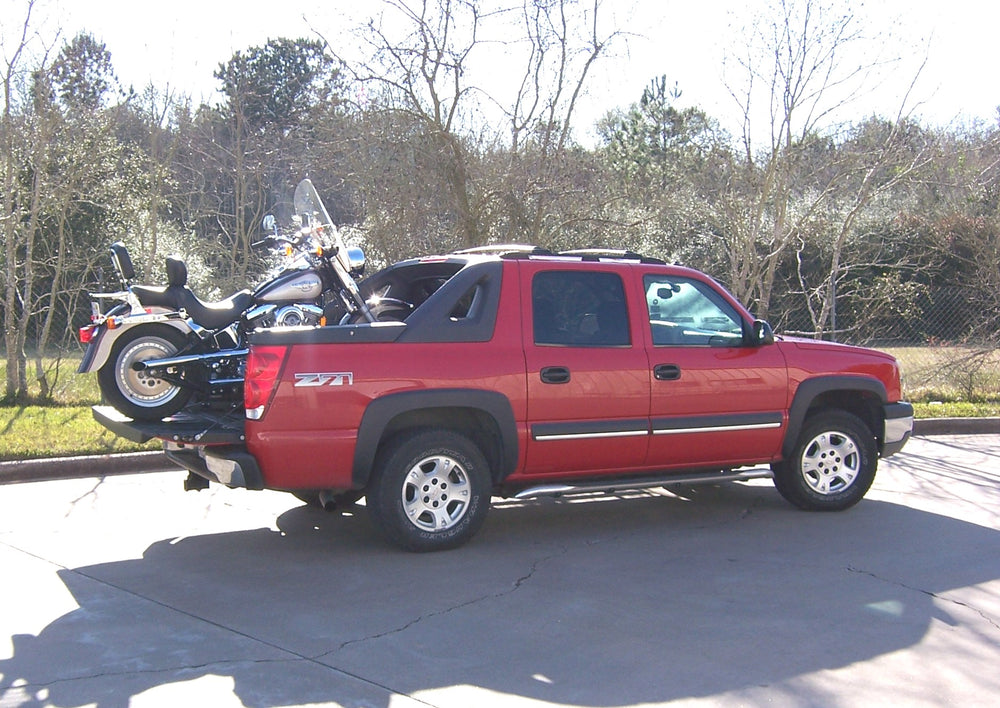

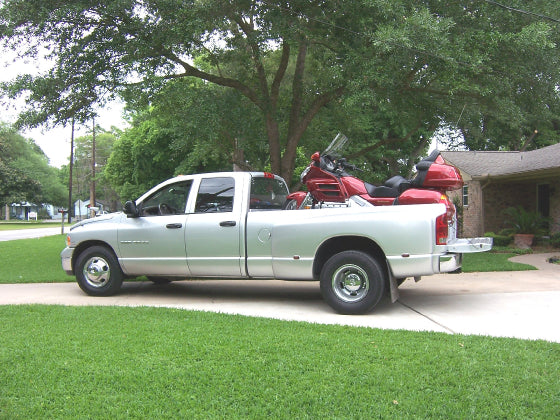

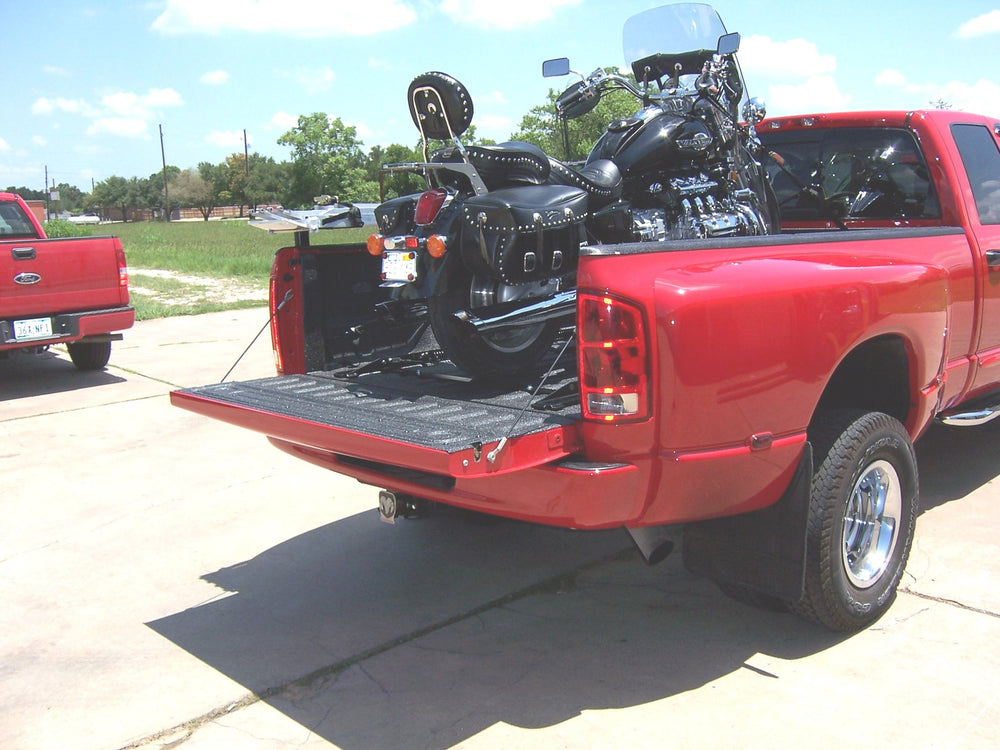

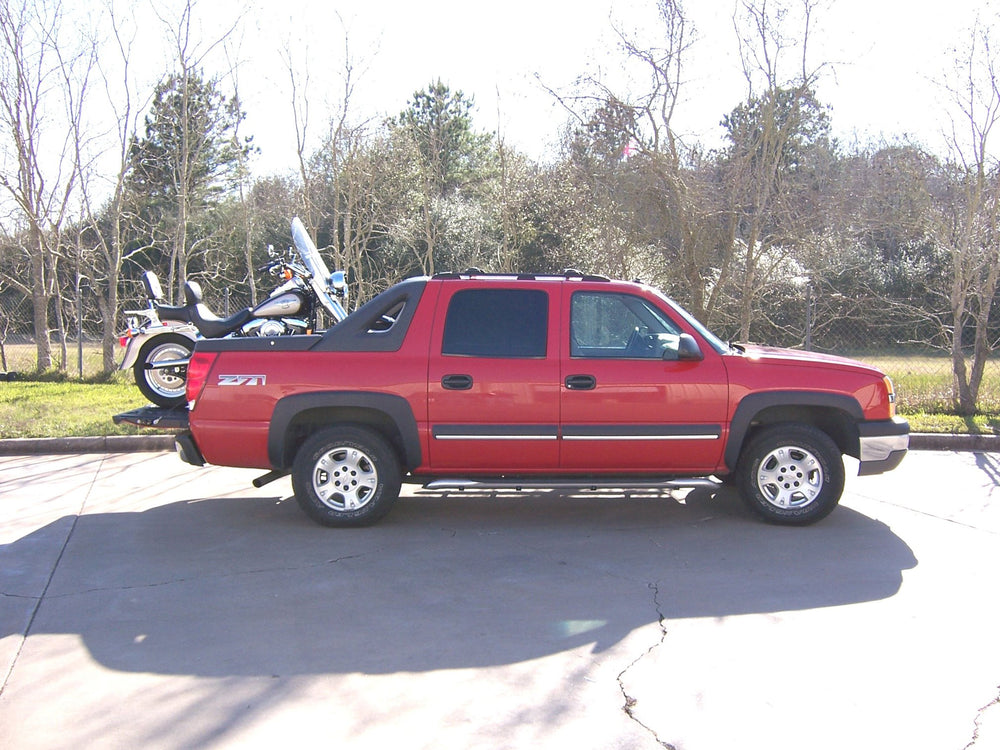

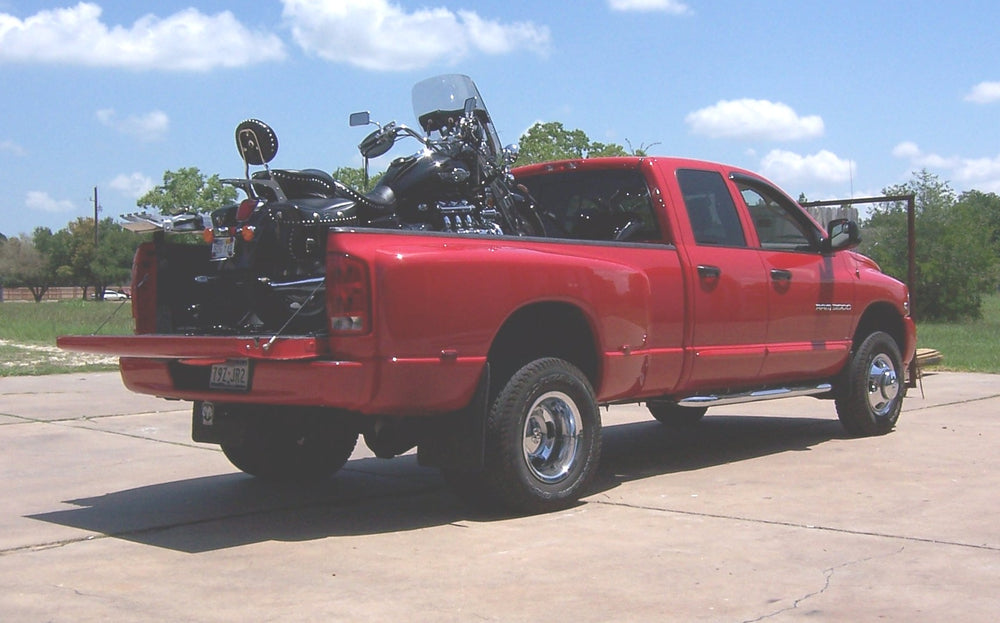

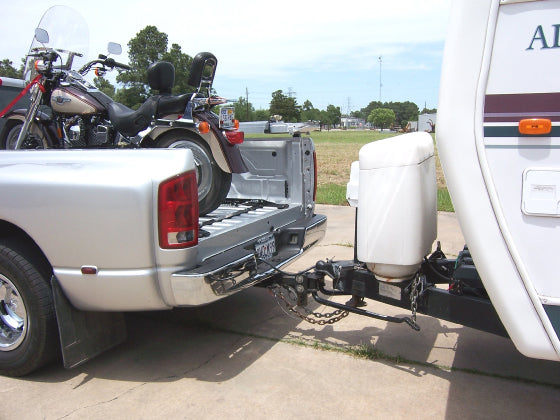

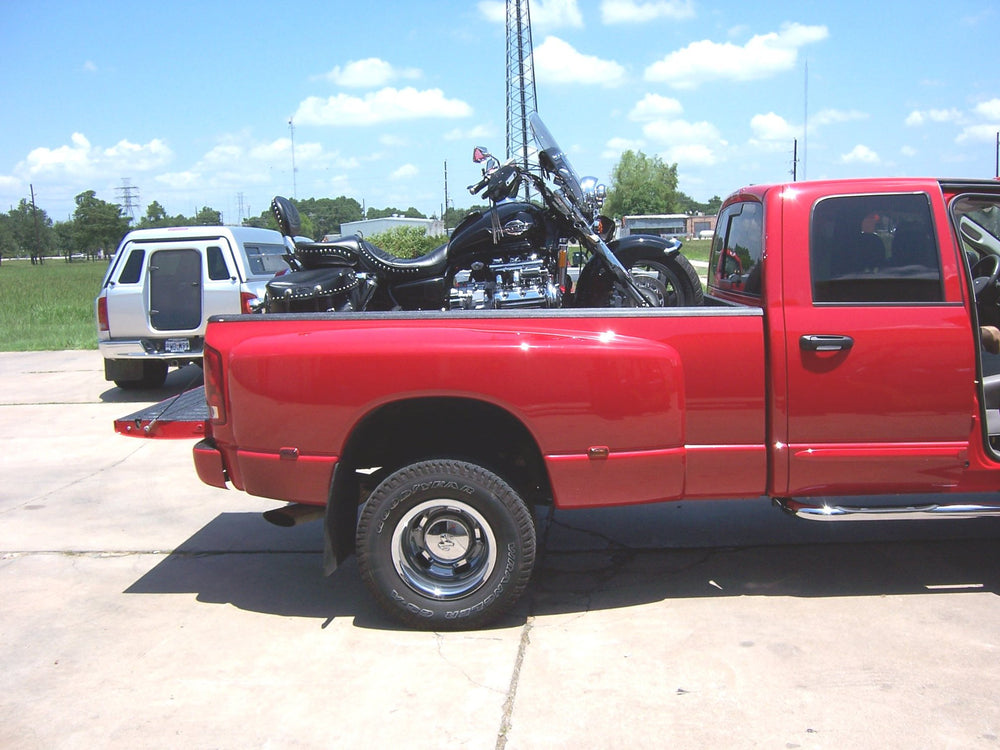

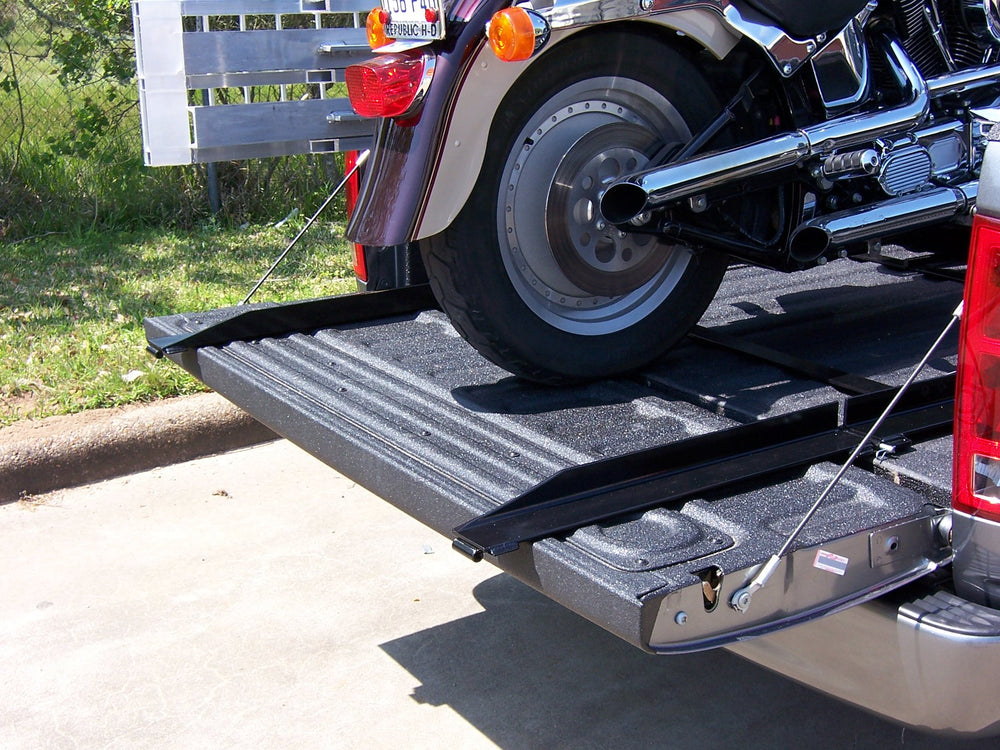

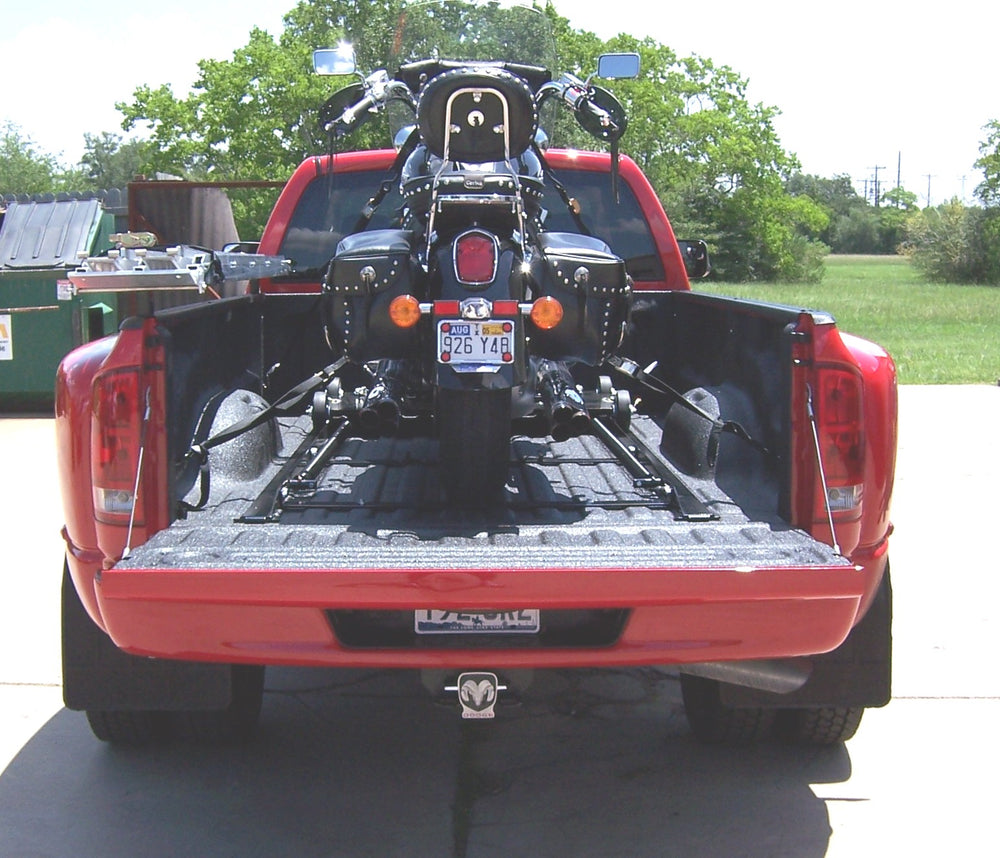

The Cruiser Ramp system will accommodate the standard 5'-6", 6'-6", and 8' bed lengths with 42" clearance between the wheel wells which includes step side model pickups as well as the Chevrolet Avalanche and like vehicles. The pickup loader allows for the tailgate of the pickup to be closed with the motorcycle removed on the 5'-6" and 6'-6" models. The tailgate may also be closed with the 8' bed model with the motorcycle loaded or removed from the bed.
The motorcycle may be loaded into a 8' bed with or without the tailgate attached for longer bikes. The Cruiser Ramp pickup loader is easy to install and remove.

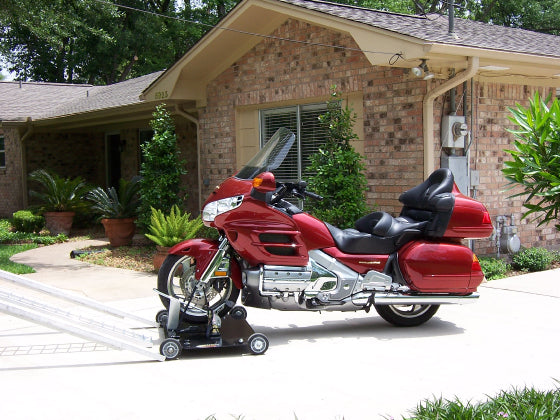

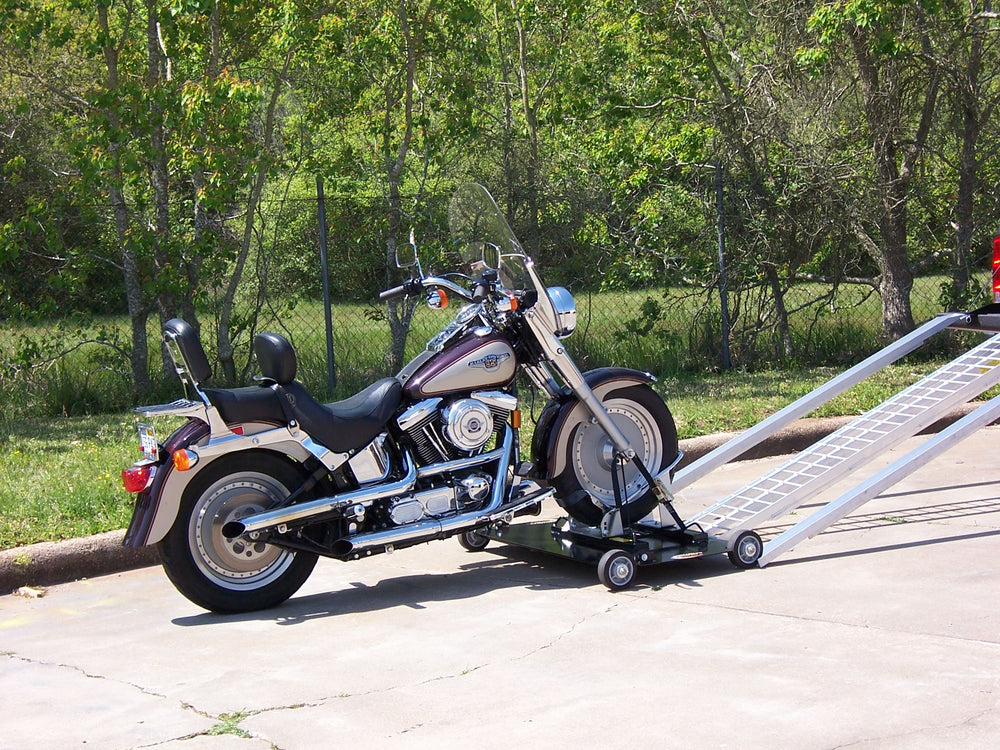

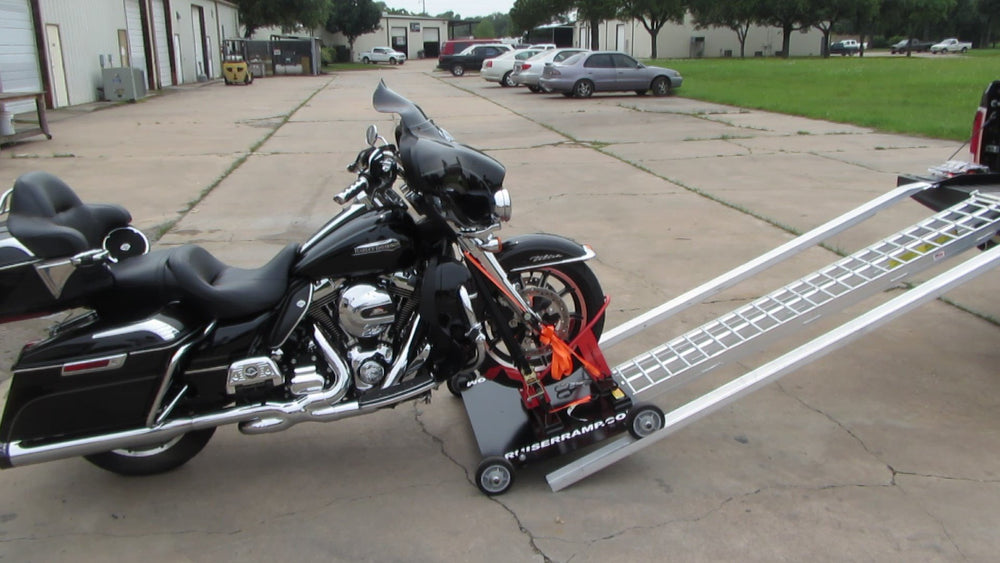

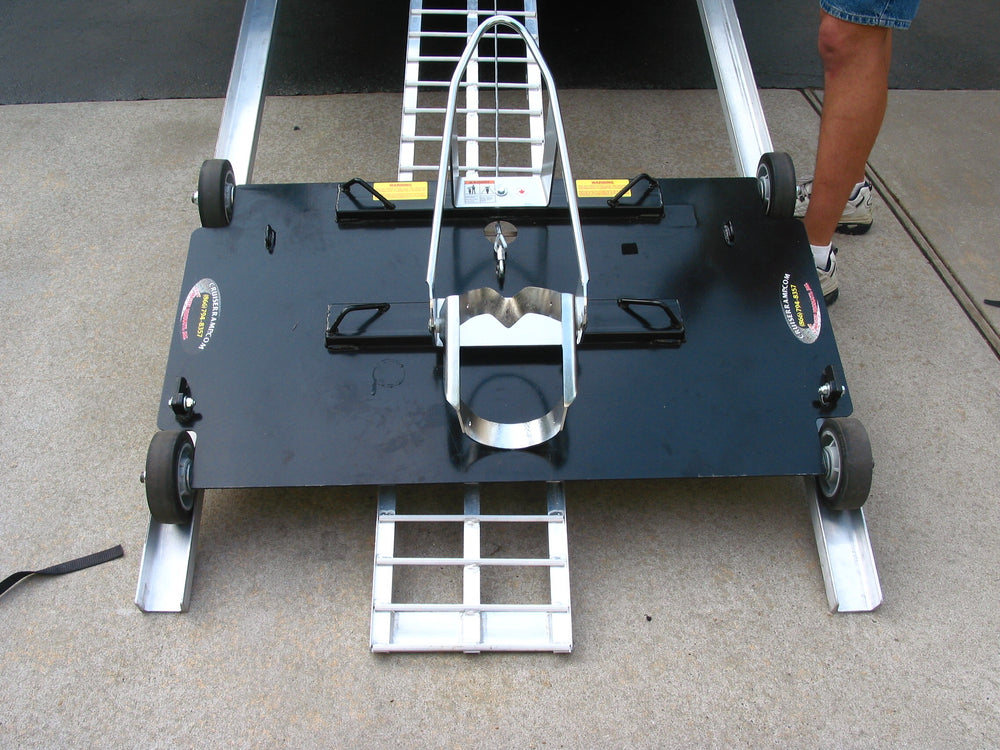

The Cruiser Ramp removes the motorcycle from the bed without having to pull the motorcycle out by hand. This is done without using multiple winches and complicated electronic switching.

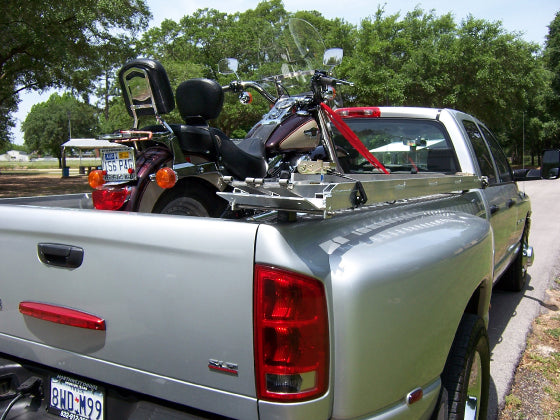

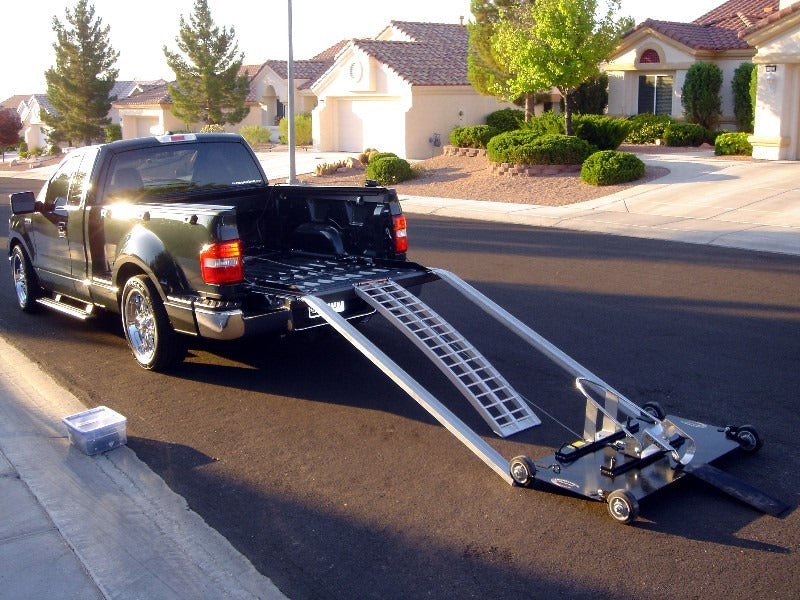

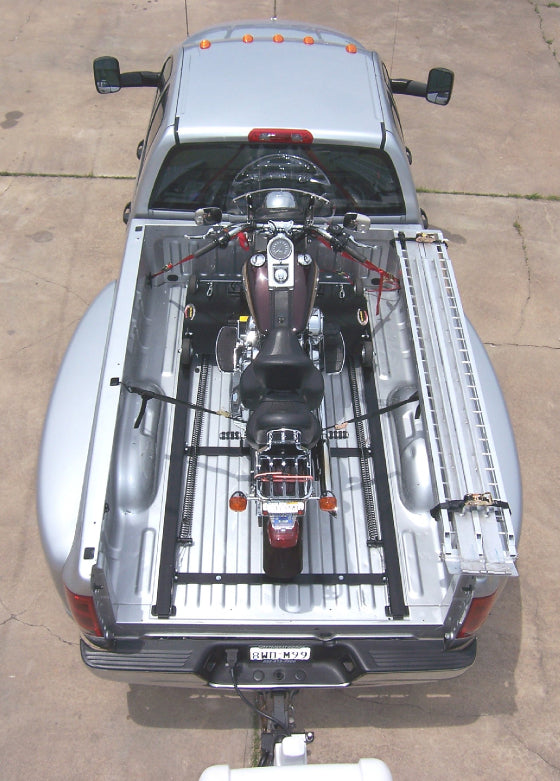

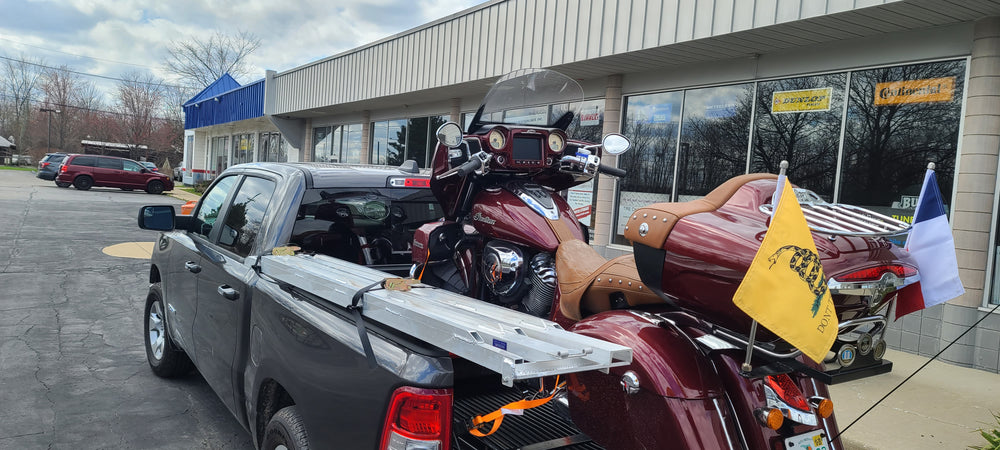

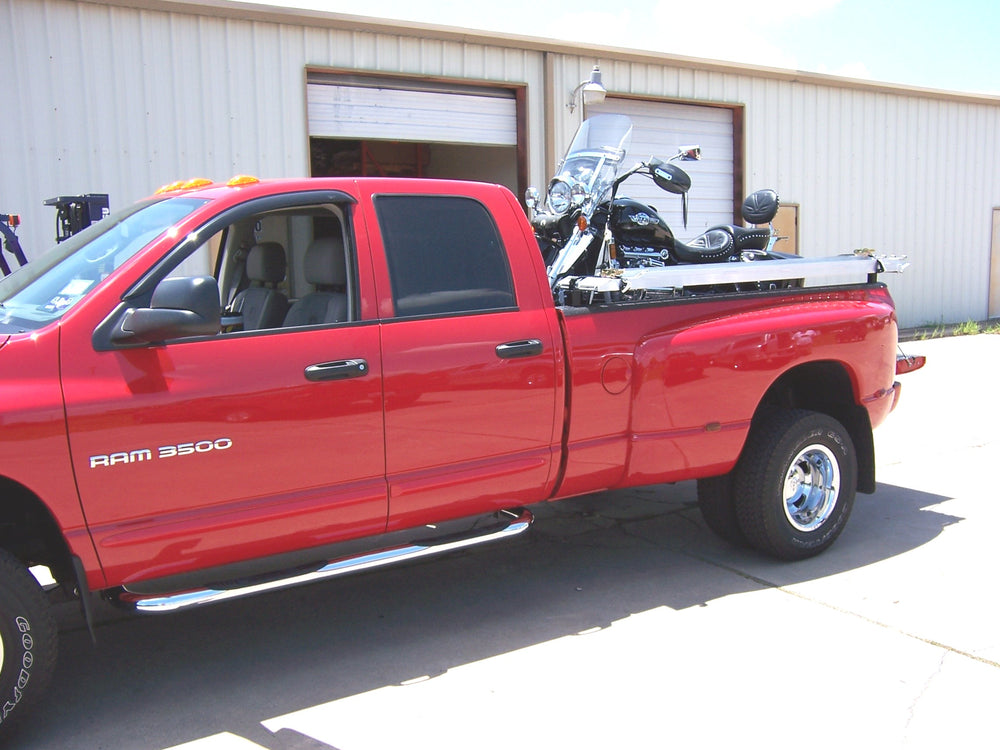

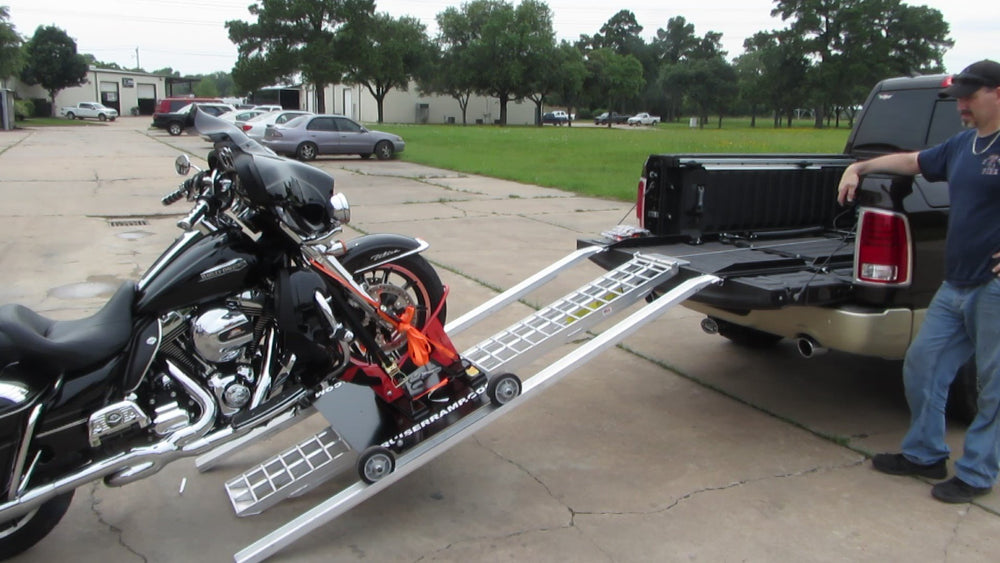

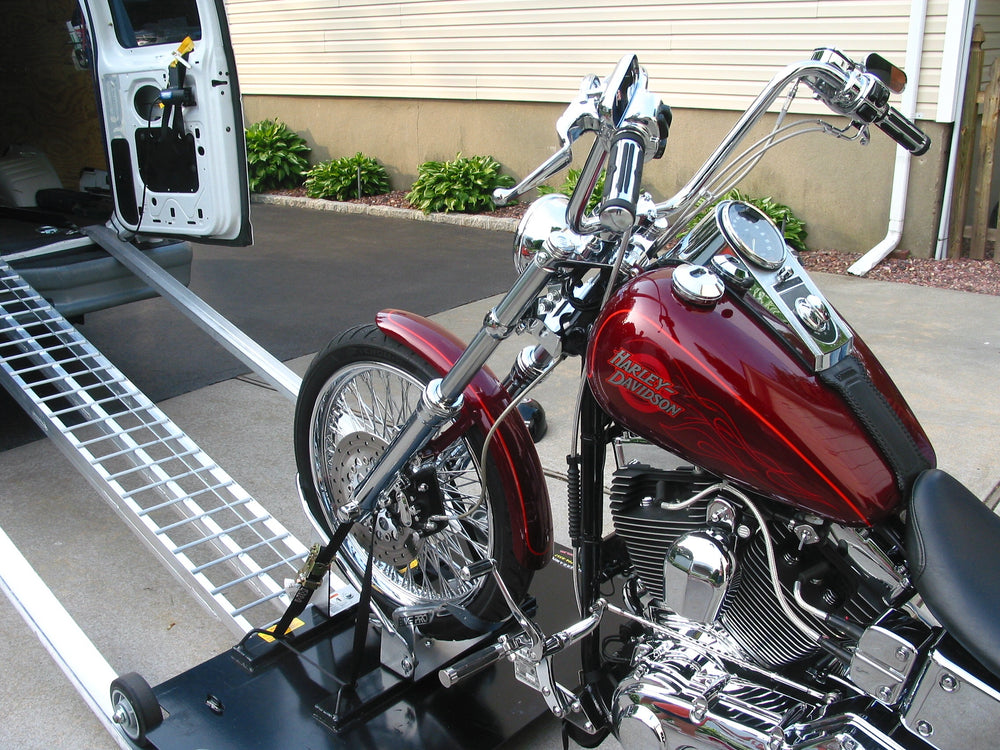

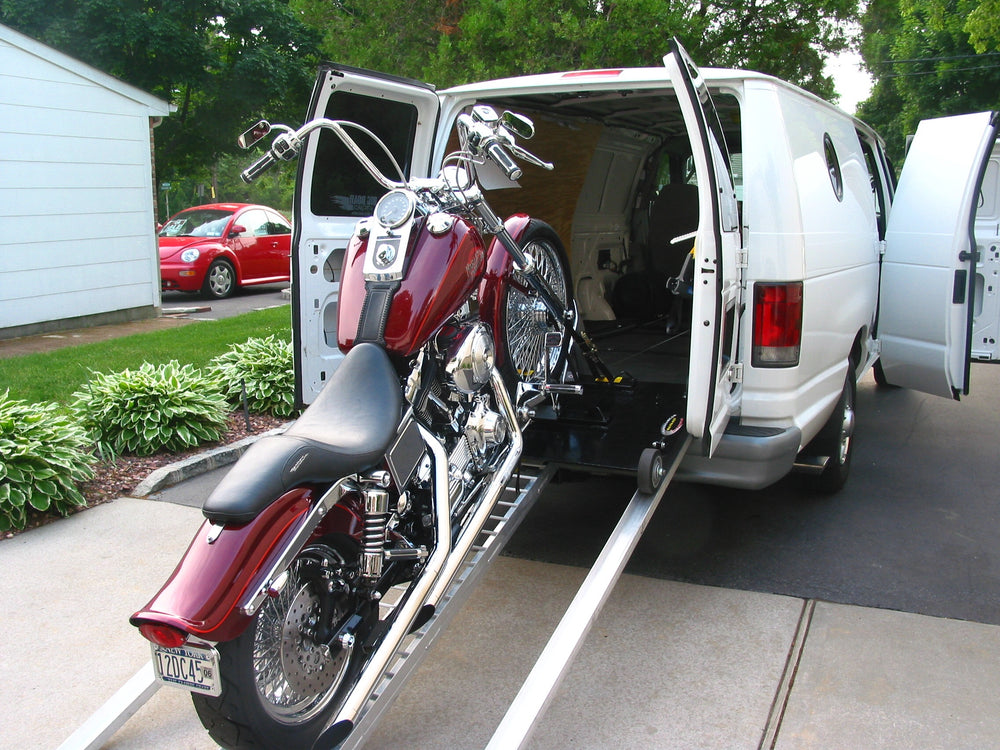

The loading ramps store within their own holders along the side of the pickup bed. The holders just drop into the stake bed holes within the pickup bed rail. They may be trimmed in order to lower the ramps as far as possible within the bed.

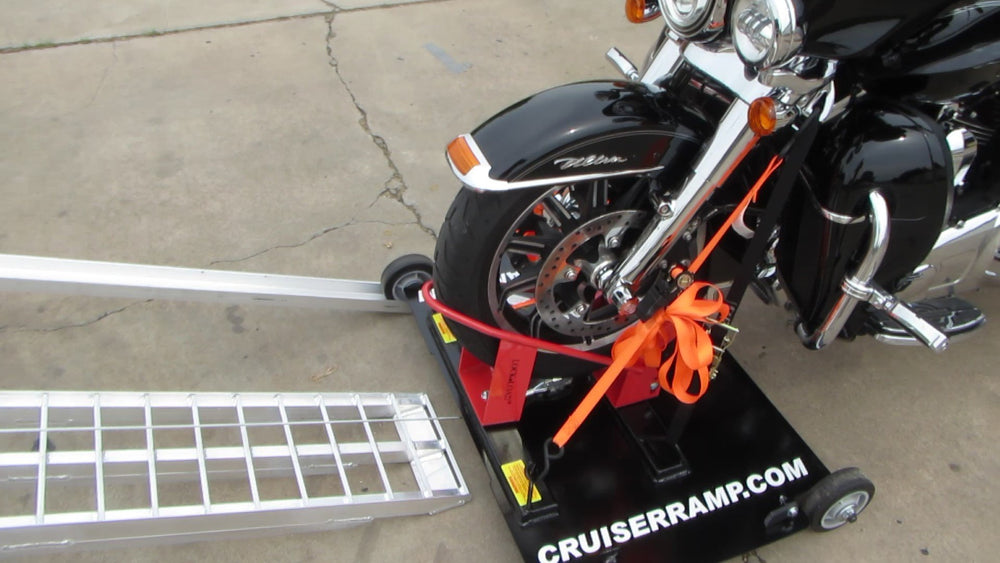

When using the Cruiser Ramp.the tailgate from the ground to the top cannot be taller than 42". If the vehicle is taller than 42" it can bottom out the trolley system during the loading process.
Unlike most competitors on the market the Cruiser Ramp will load and unload the motorcycle from the bed of the truck, so you don't have to pull or help the motorcycle in or out of the truck.
Cruiser Ramp Specs :
1.) Easy installation and removal from the pick-up bed.
2.) Compatible with all full size pick-up beds 5'-5", 6'-6" and 8'
3.) 1,000 pound motorcycle load capacity.

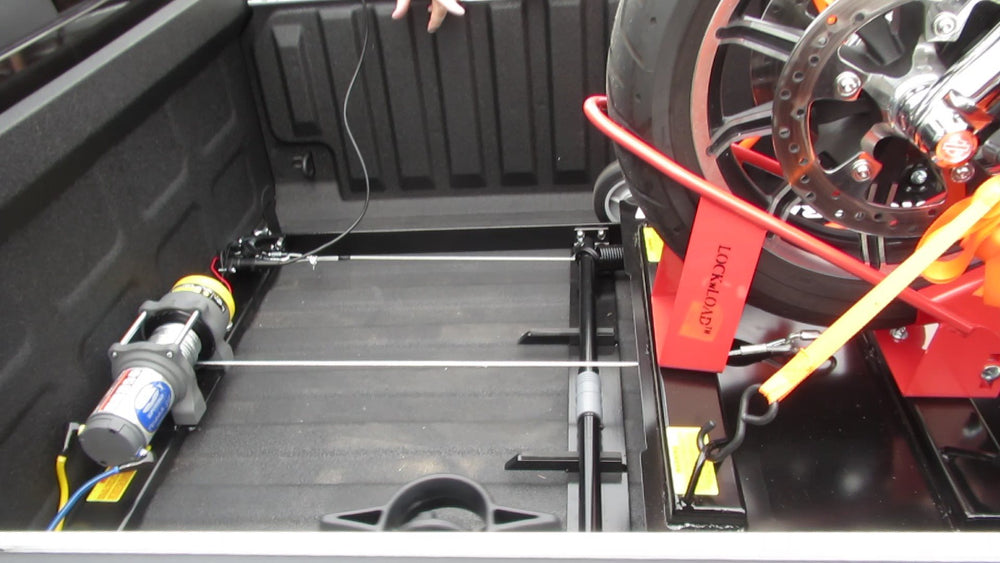

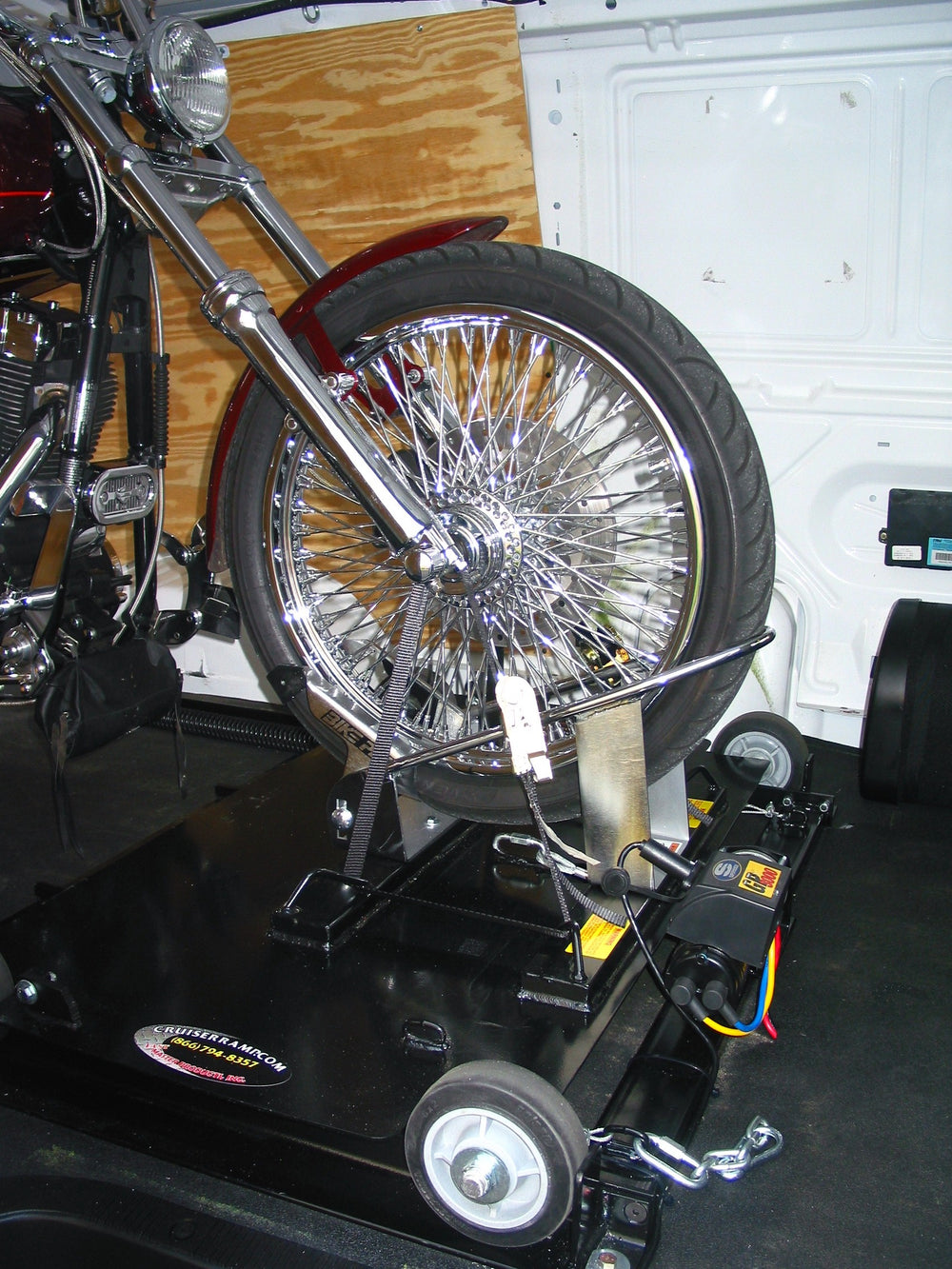

4.) LT 2500 winch = 2500 pound with a 3/16 heavy duty cable.
